Keyless Entry System Wiring Diagram [Advanced Keyless System]

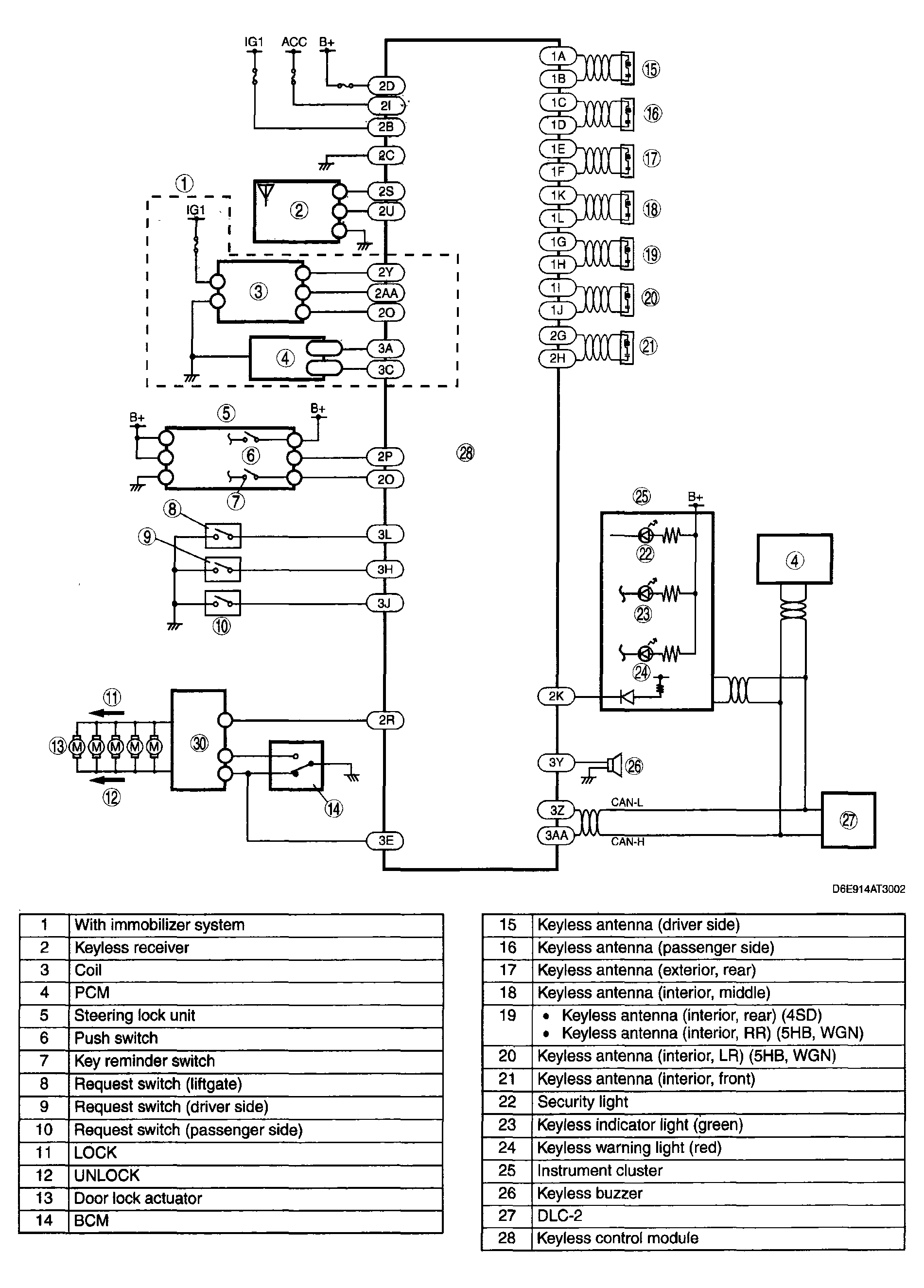

Fig 1: Keyless Entry System - Wiring Diagram (Advanced Keyless System)
G04327101Courtesy of MAZDA MOTORS CORP.
