Outer Mirror Glass Assembly Note

  1. Press the outer mirror into the base so that the pin does not dislodge.

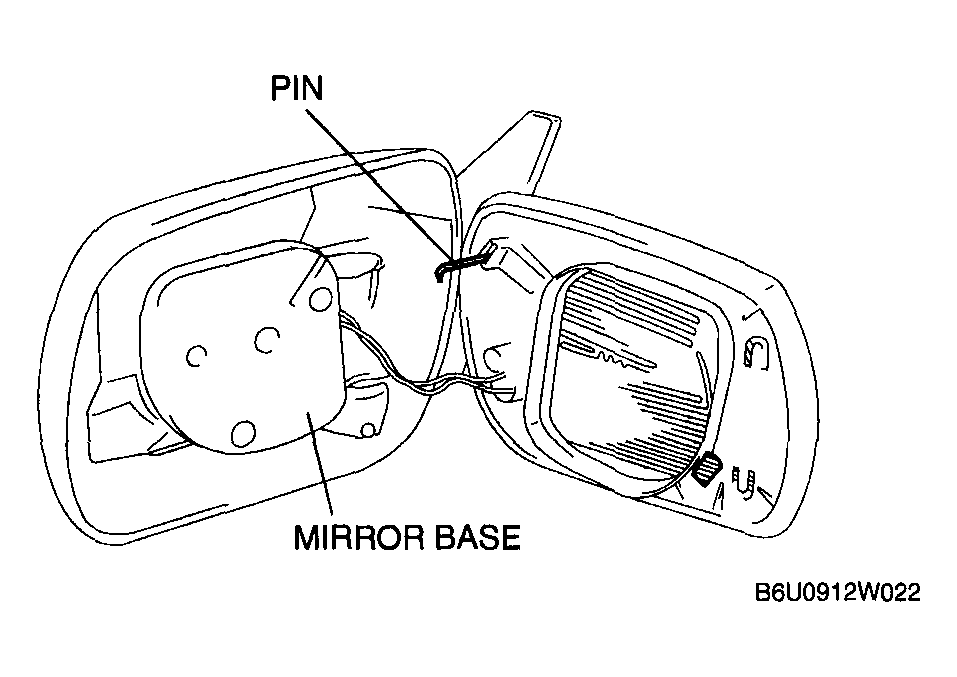

    Fig 1: Pressing Outer Mirror Into Base
    G04327227Courtesy of MAZDA MOTORS CORP.
