Seat Warmer Switch Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the panel No.1. (See CONSOLE REMOVAL/INSTALLATION. )
  3. Remove in the order indicated in the table.

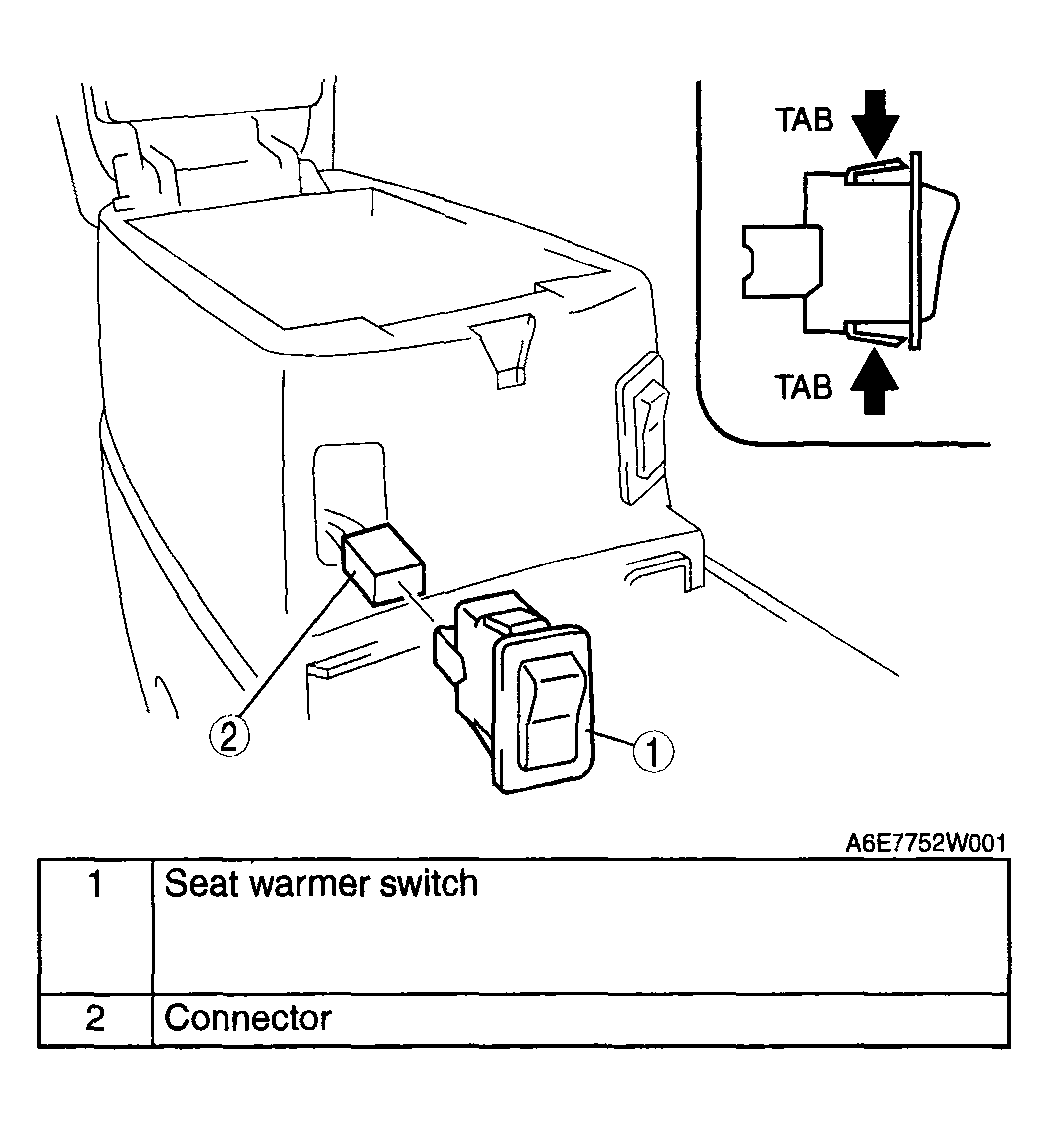

    Fig 1: Seat Warmer Switch
    G04327290
  4. Install in the reverse order of removal.
