Quick Diagnostic Chart

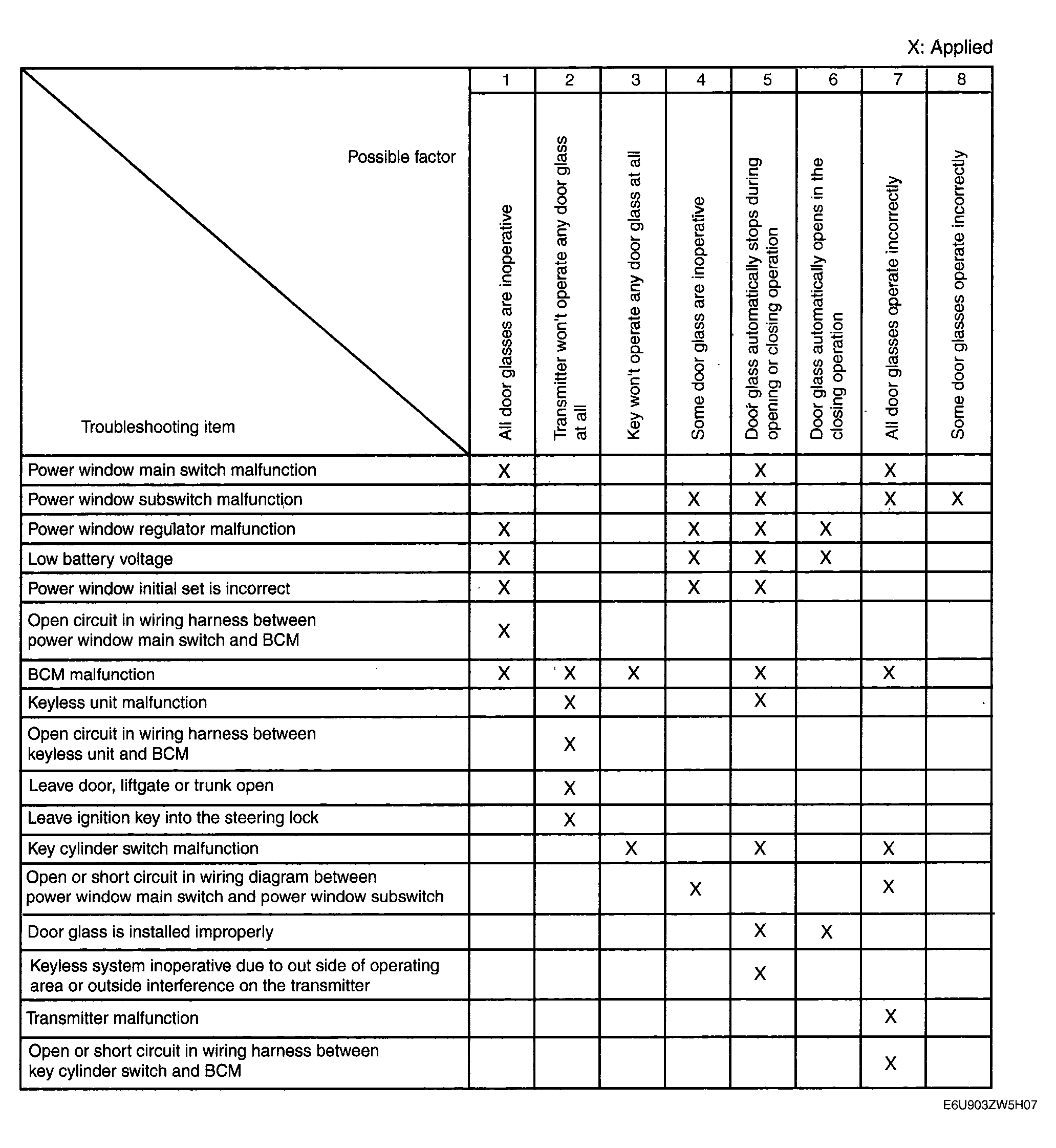

Fig 1: Quick Diagnostic Chart

Courtesy of MAZDA MOTORS CORP.

NOTE:

The global closing system won't operate under the following conditions:
- Leave the door, liftgate or trunk open.
- Leave ignition key into the steering lock.
- Start knob is not in LOCK position
Power window automatic operation function does not operate after the power window is initialized.
Outside temperature and/or vehicle battery voltage condition may cause the incorrect operation of the power window (e.g., Door glass automatically opens in the closing operation).
