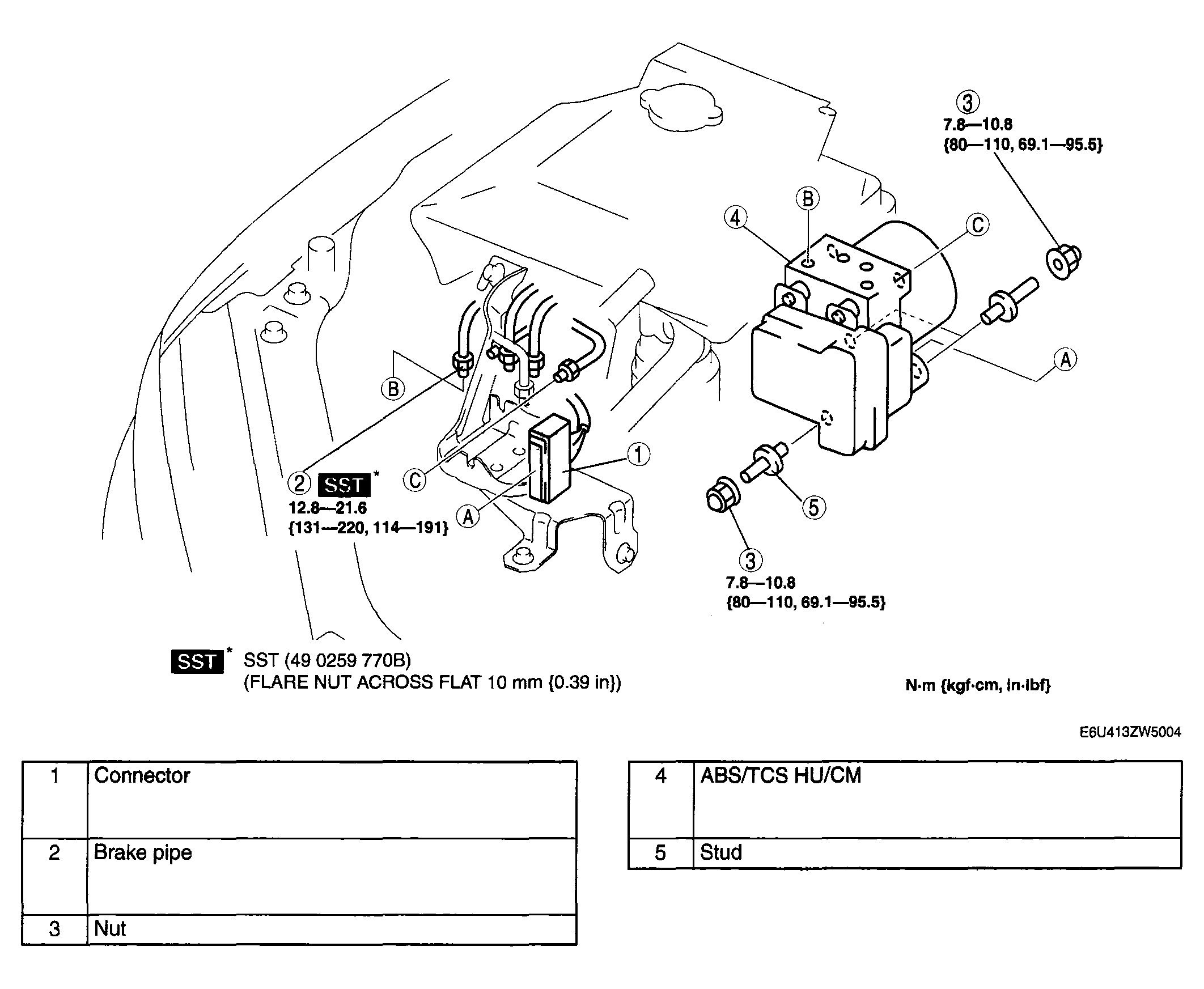

Abs/TCS HU/Cm Removal/Installation: Notes
CAUTION:
- When replacing the ABS/TCS HU/CM, the configuration procedure must be done before removing the ABS/TCS HU/CM. If the configuration is not completed before removing the ABS/TCS HU/CM, TCS will not work properly after installation of the ABS/TCS HU/CM.
- Do not drop the ABS/TCS HU/CM. Replace it if it is subjected to an impact.
- Configure the ABS/TCS HU/CM (only when replacing it). (See ABS/TCS HU/CM CONFIGURATION ).
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
