Operating Order

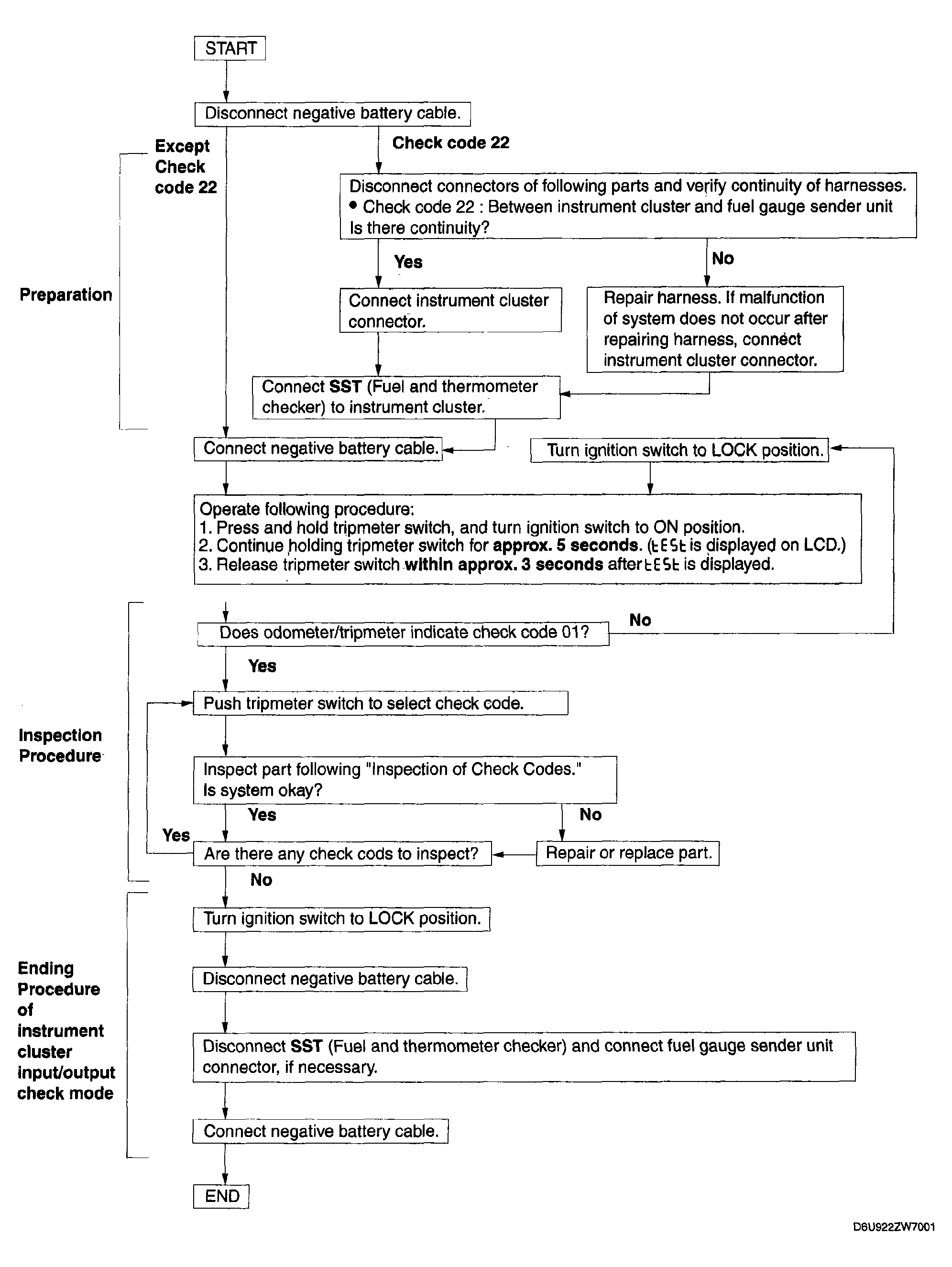

Fig 1: Instrument Cluster Operating Order Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
