Starter Removal/Installation: Notes
WARNING:
- When the battery cables are connected, touching the vehicle body with starter terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.
- Disconnect the negative battery cable.
- Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [L3 WITH TC] ).
- Remove the air cleaner, charge air cooler cover, and air hose. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).
- Remove the under cover.
- Remove the oil filter and oil cooler component with the water hoses still connected. Position the oil filter and oil cooler component so that it is out of the way.

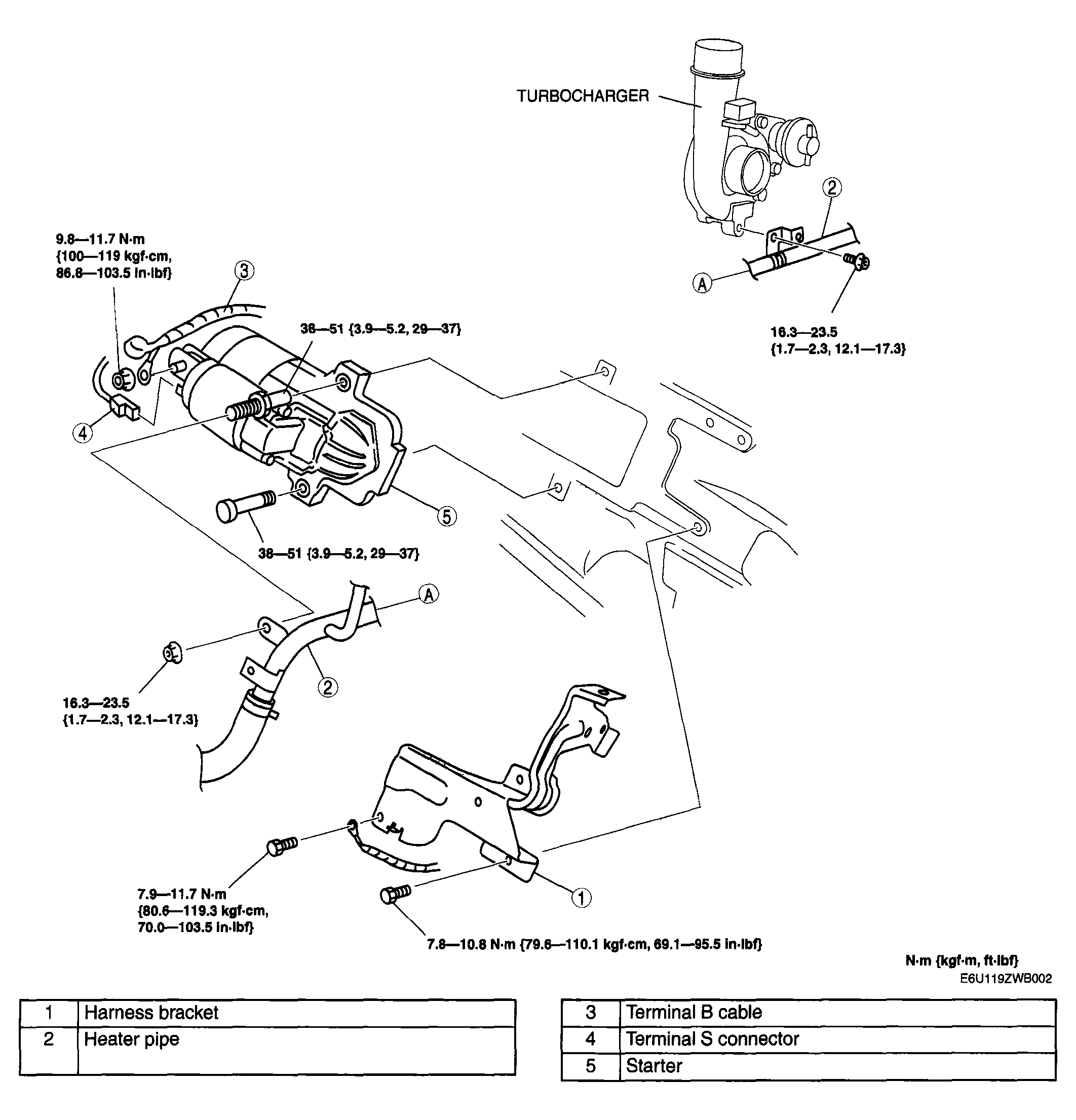

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Inspect the engine oil level. (See ENGINE OIL LEVEL INSPECTION ).
