Mass Air Flow (MAF) Sensor Inspection
>>
Circuit Open/Short Inspection
>>
Open circuit
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Open circuit

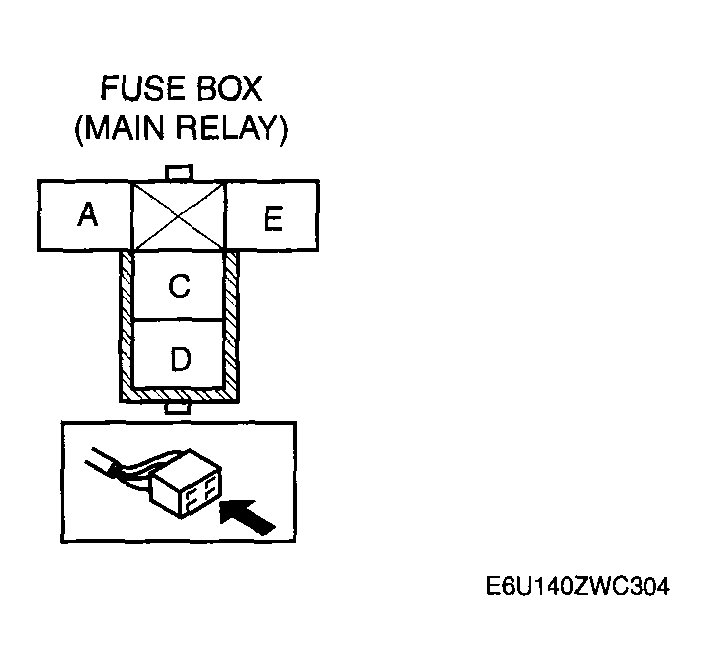

Fig 1: Identifying Fuse Box Main Relay
Courtesy of MAZDA MOTORS CORP.
If there is no continuity, there is an open circuit. Repair or replace the wiring harness.
MAF sensor terminal A and main relay terminal C
MAF sensor terminal B and PCM terminal 11
MAF sensor terminal C and PCM terminal 1P
