Fuel System Location Index
>>
Engine Room Side
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Room Side

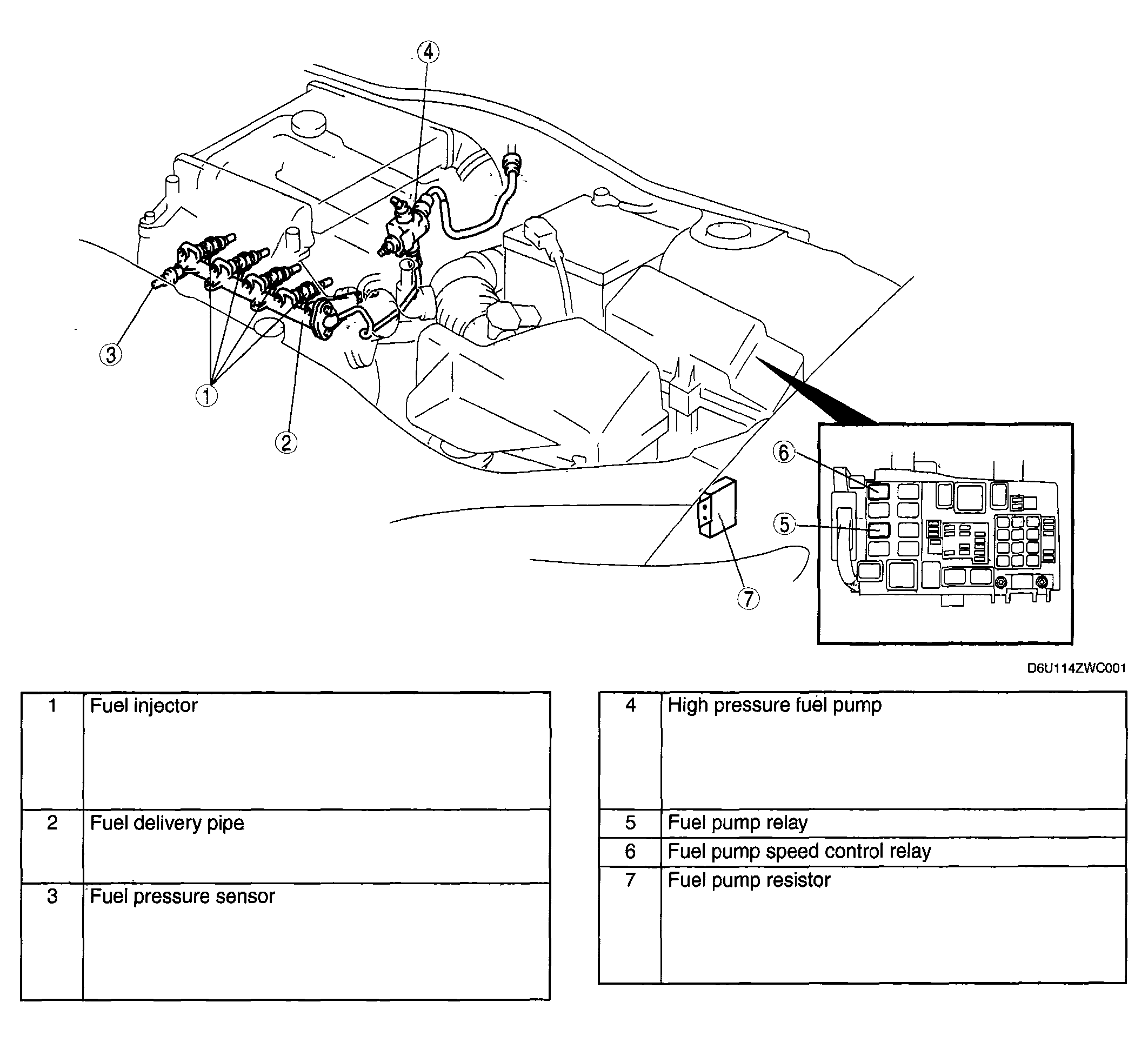

Fig 1: Identifying Fuel System Components Location (Engine Room Side)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
