DTC P2504: Notes

DTC P2504 DETECTION CONDITION AND POSSIBLE CAUSES

DTC P2504 Charging system voltage high
DETECTION CONDITION
  • PCM determines that the generator output voltage is above 18.5 V  or the battery voltage is above 16.0 V  while the engine is running.

Diagnostic support note
  • This is a continuous monitor (Other).
  • The MIL does not illuminate.
  • FREEZE FRAME DATA is not available.
  • DTCs are stored in the PCM memory.
POSSIBLE CAUSE
  • Short to the power circuit between generator connector terminal D and PCM connector terminal 1 AD
  • Generator malfunction
  • PCM and/or generator are poorly connected

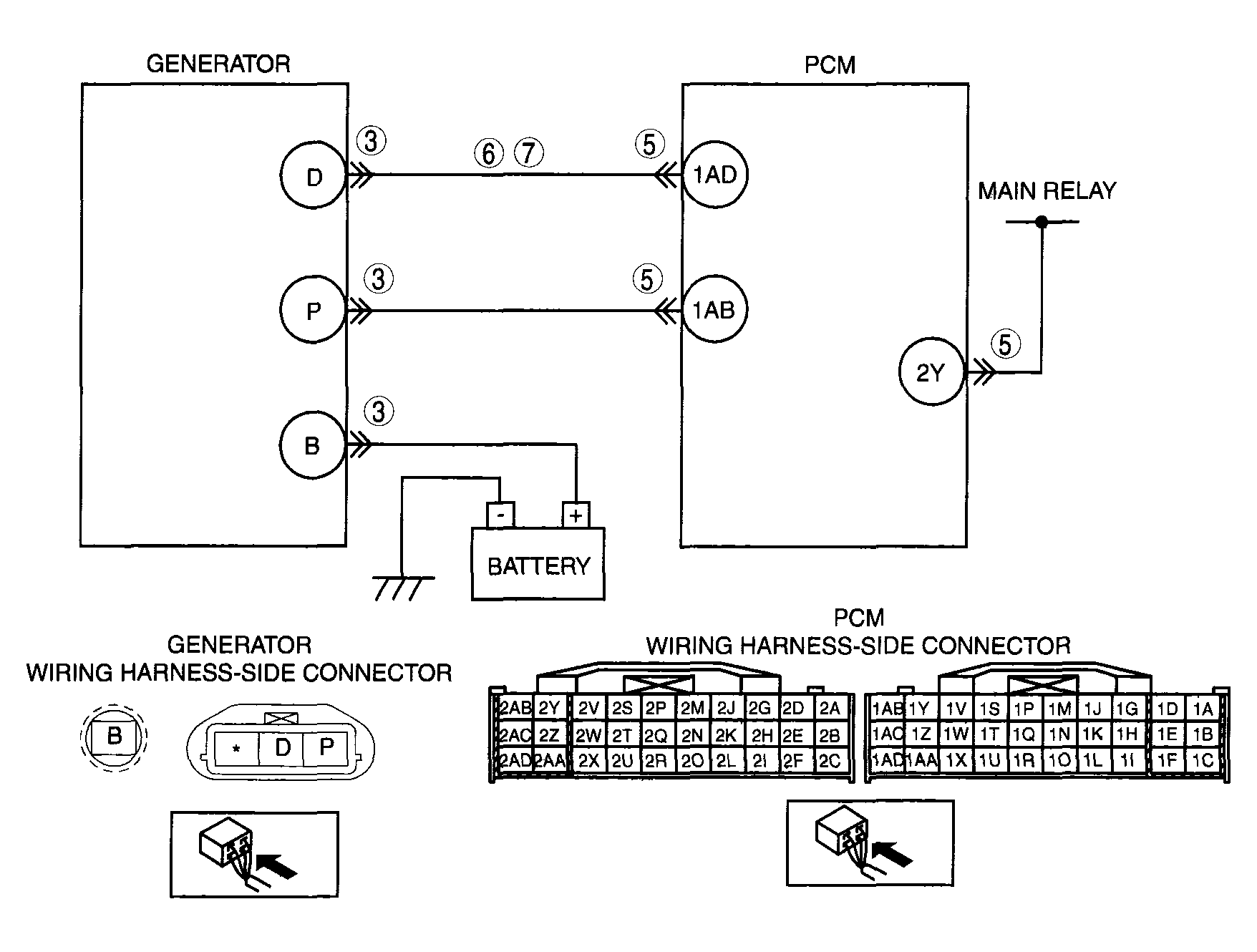

G04324154Courtesy of MAZDA MOTORS CORP.
