Discharge Headlight Control Module Removal/Installation
WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the discharge headlight service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS .)
- Remove the battery cover.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
- Remove the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)

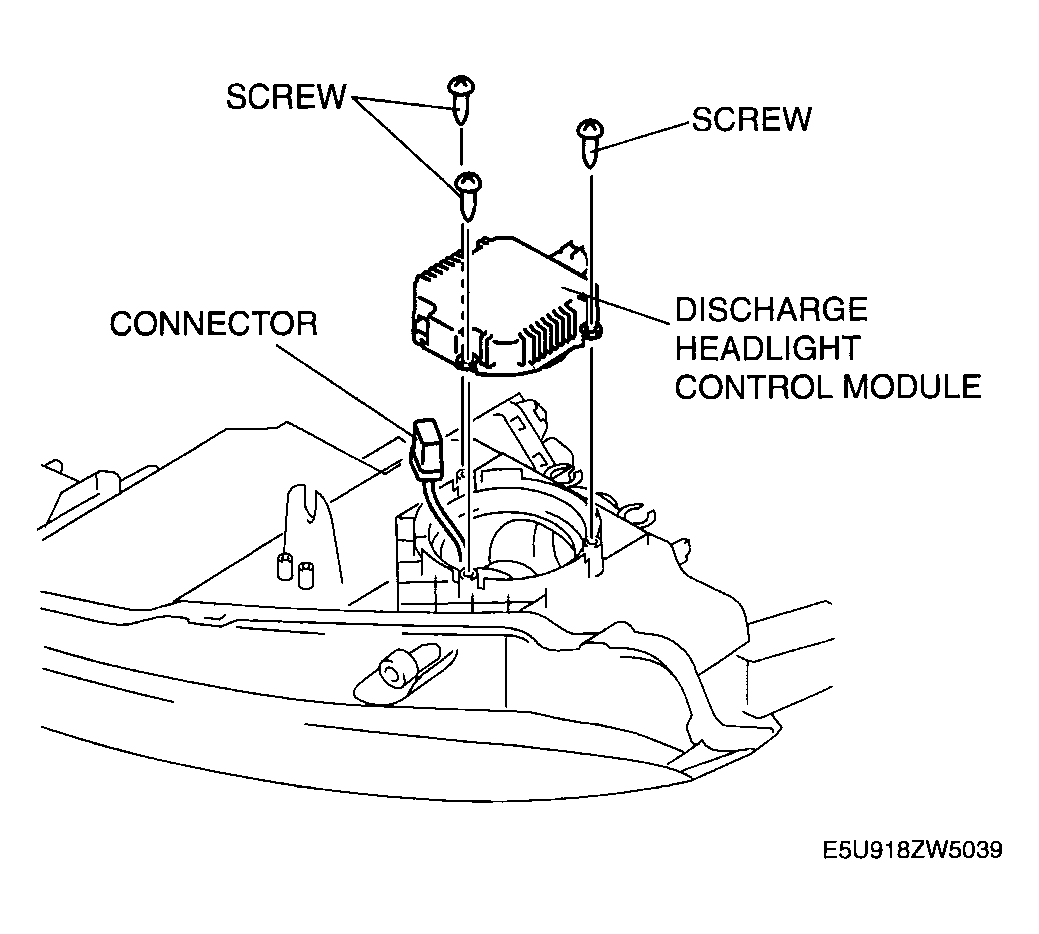

- Remove screws.
- Disconnect the connector.
- Remove the discharge headlight control module.
- Install in the reverse order of removal.
