Headlight Aiming

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Point the headlight beams to a wall and verify that the headlight beams are as shown in Fig 1 .

Fig 1: Identifying Headlight Aiming Adjustment
Courtesy of MAZDA MOTORS CORP.
Make a headlight adjustment screen as shown in Fig 2 using double-weight, white paper.
Adjust the tire pressure to the specification.
Position the unloaded vehicle on a flat, level surface.
Seat one person in the driver's seat.
Position the vehicle straight ahead and perpendicular to the white screen.

Fig 2: Identifying Headlight Adjustment Screen
Courtesy of MAZDA MOTORS CORP.
Set the headlights 3 m {9.8 ft} from the white screen.
Place an object in front of the headlight not being adjusted to block its light beam.
Start the engine so that the battery remains charged.
Turn on the low-beam headlight.

Fig 3: Identifying Distance Between Headlight Adjustment Screen & Vehicle
Courtesy of MAZDA MOTORS CORP.

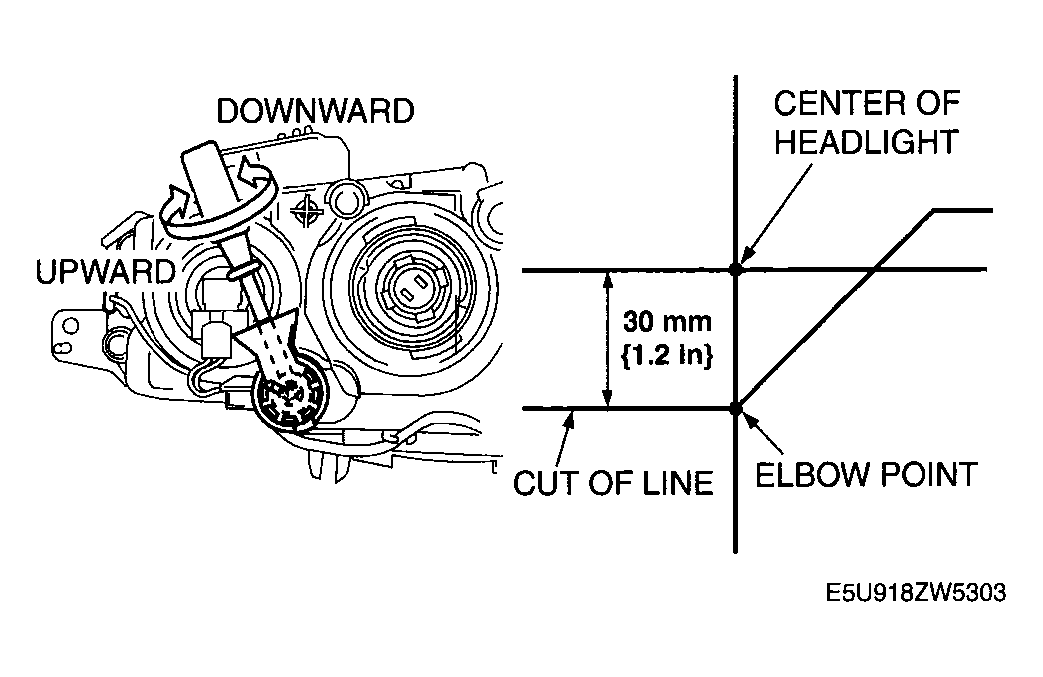

Adjust by turning the aiming adjustment screw so that elbow point is in the position shown in Fig 4 .

Fig 4: Identifying Aiming Adjustment Screw
Courtesy of MAZDA MOTORS CORP.
