Light Switch Inspection

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the continuity between the light switch terminals is as indicated in Fig 1 .

If not as indicated in Fig 1 replace the light switch.

Headlight Switch

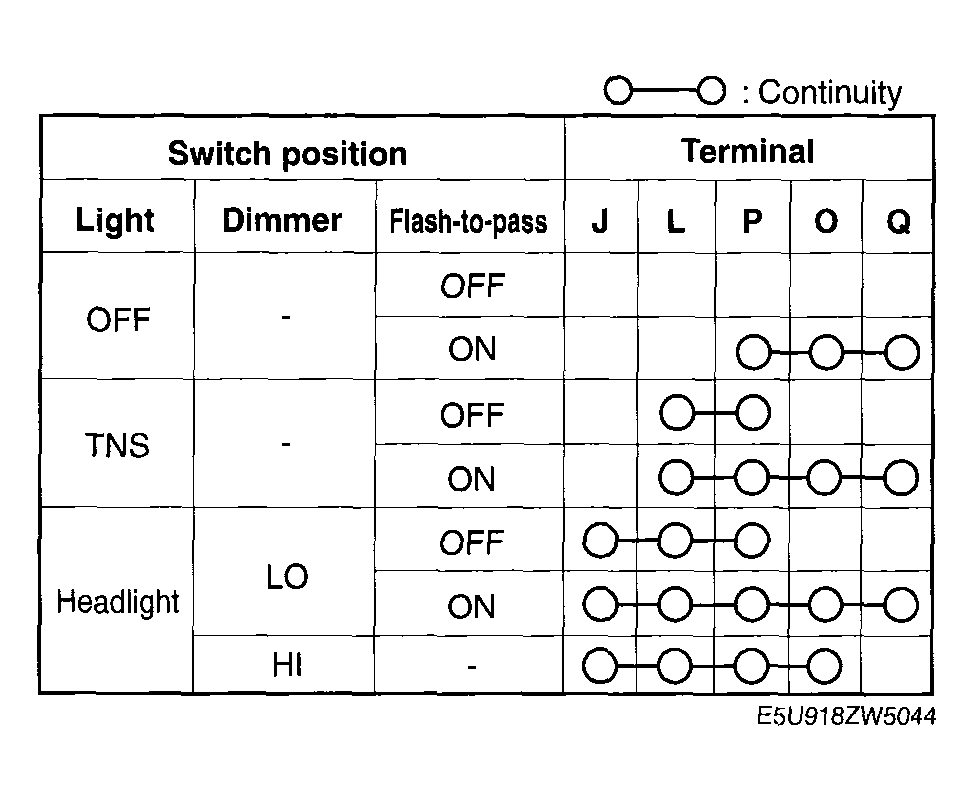

Fig 1: Headlight Switch Continuity Table

Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Headlight Switch Connector Terminals

Courtesy of MAZDA MOTORS CORP.

Turn Switch

Fig 3: Turn Switch Continuity Table

Courtesy of MAZDA MOTORS CORP.

Fig 4: Identifying Turn Switch Connector Terminals

Courtesy of MAZDA MOTORS CORP.
