Refrigerant Pressure Switch Removal/Installation: Notes

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Discharge the refrigerant from the system. (See REFRIGERANT CHARGING .)
  4. Remove in the order indicated in Fig 1 .

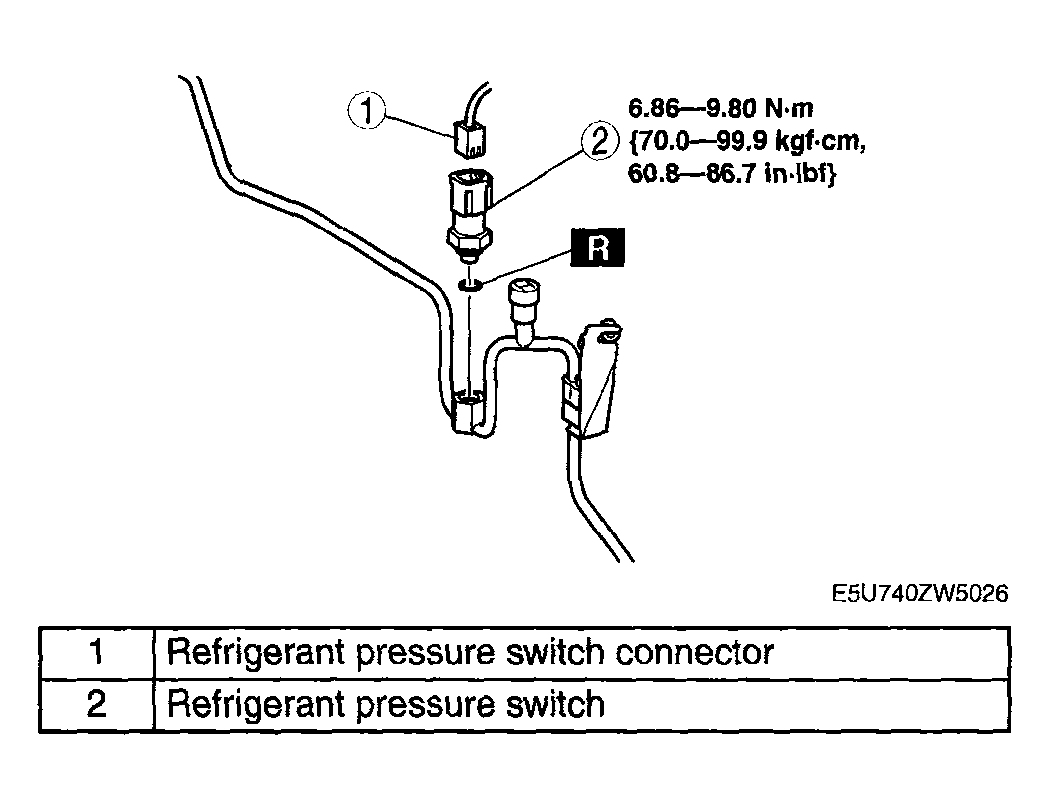

    Fig 1: View Of Refrigerant Pressure Switch Components With Torque Specifications
    G04318853Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
