Audio Control Switch Inspection
WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

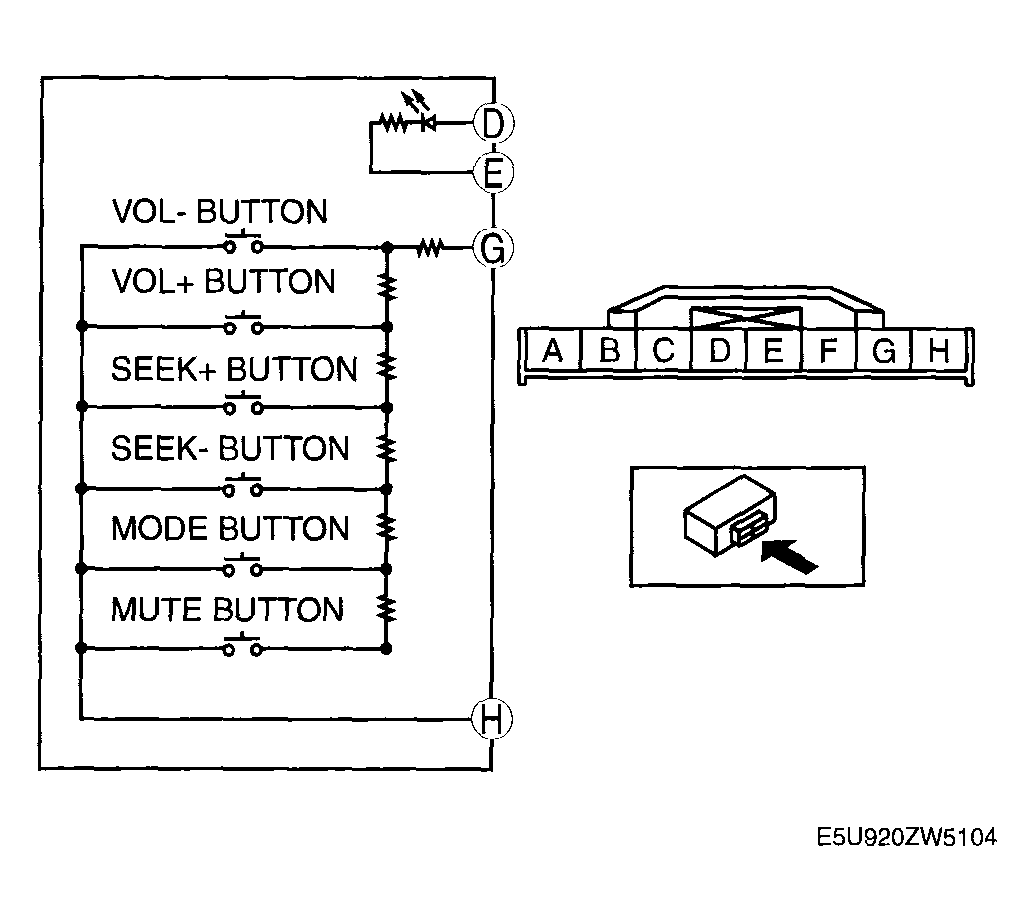

- Verify the resistance and continuity between the audio control switch terminals.
- If the resistance and continuity are not as indicated in the tables, replace the audio control switch.
AUDIO CONTROL SWITCH POSITION RESISTANCE
| Switch position | Resistance (ohm) |
|---|---|
| VOL- switch ON | 51-56 |
| VOL+ switch ON | 140-154 |
| SEEK-switch ON | 286-315 |
| SEEK- switch ON | 534-589 |
| MODE switch ON | 985-1,080 |
| MUTE switch ON | 1,940-2,130 |
| OFF | 4,800-5,290 |
