Tweeter Inspection

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Inspect for resistance between the tweeter terminals using an ohmmeter.
- If the resistance is not within the specification, replace the tweeter.
Fig 1: Tweeter Continuity Table
Courtesy of MAZDA MOTORS CORP.

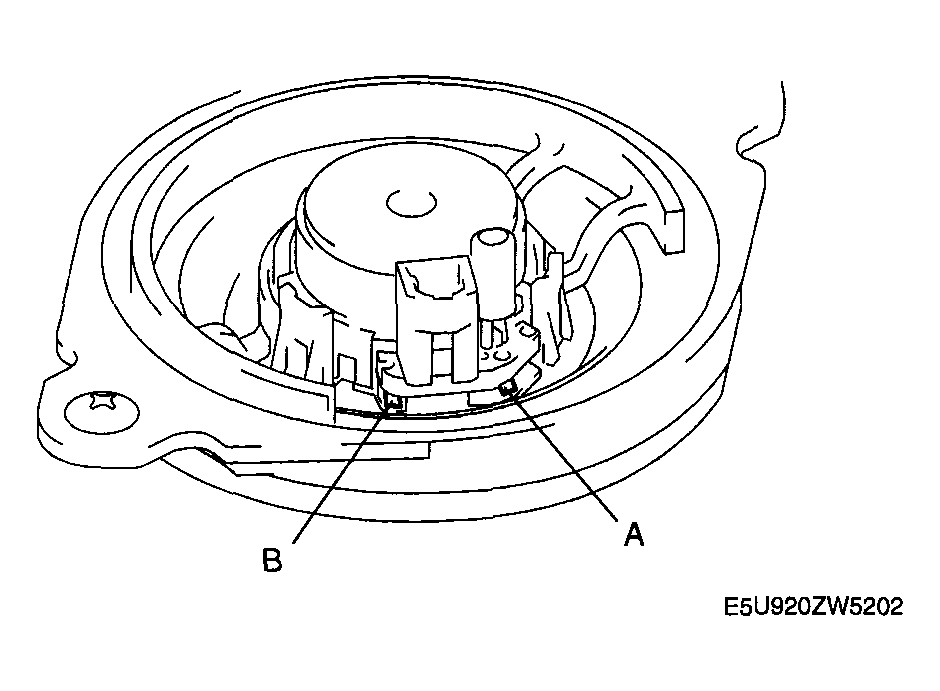

Fig 2: Identifying Tweeter Terminals
Courtesy of MAZDA MOTORS CORP.
