A/C Unit Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in Fig 1 .
    CAUTION:
    • If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.
    • If the air mix damper is removed and reinstalled improperly because the original installation position cannot be specified, the air mix damper and air mix actuator may be damaged when it is operated. Therefore, set the air mix to the middle position before disassembling so that the installation position can be specified.
  2. Assemble in the reverse order of disassembly.

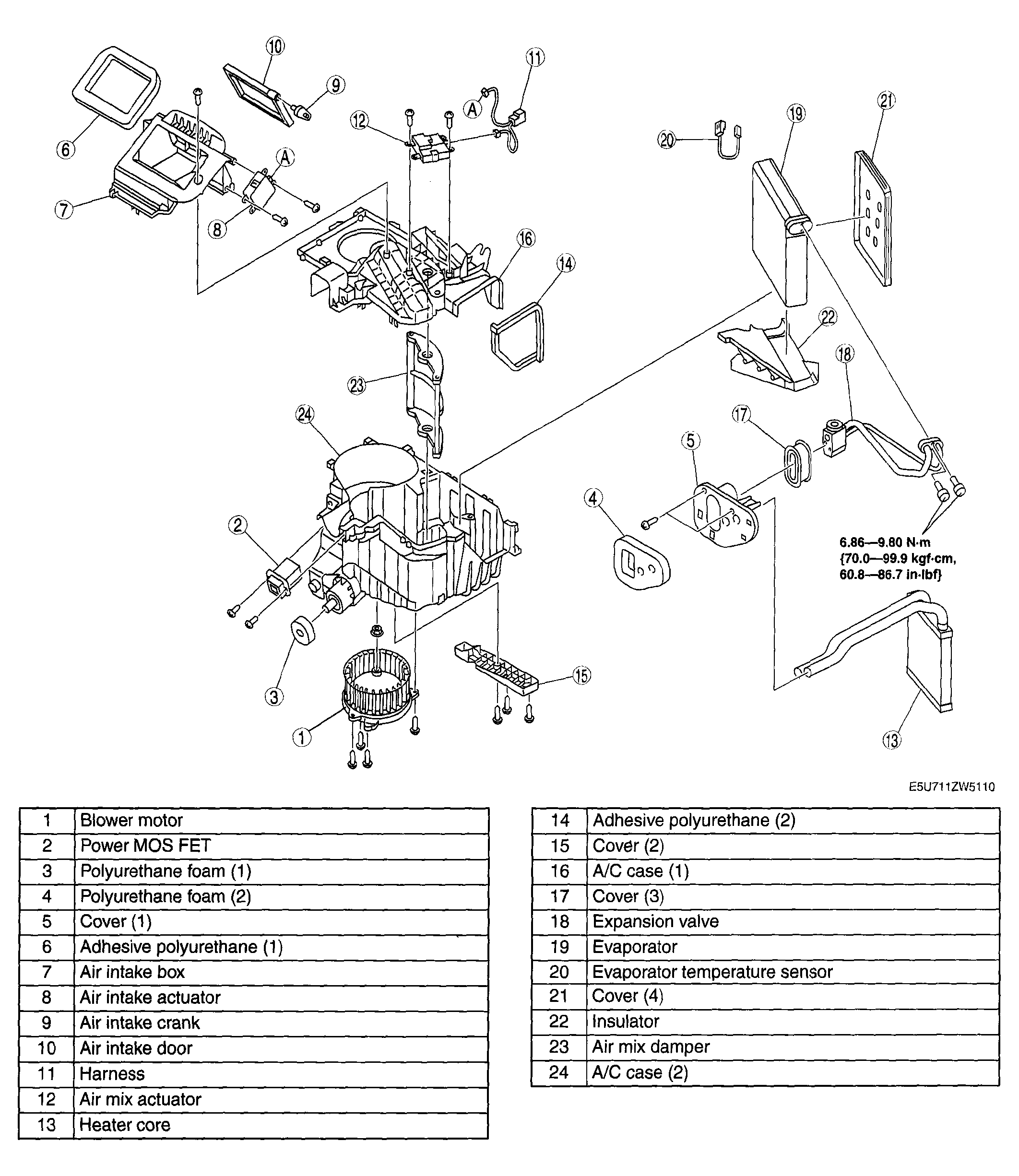

    Fig 1: Exploded View Of A/C Unit Components With Torque Specifications
    G04318824Courtesy of MAZDA MOTORS CORP.
