Air Distribution Unit Disassembly/Assembly

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in Fig 1 .
CAUTION:
- If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.

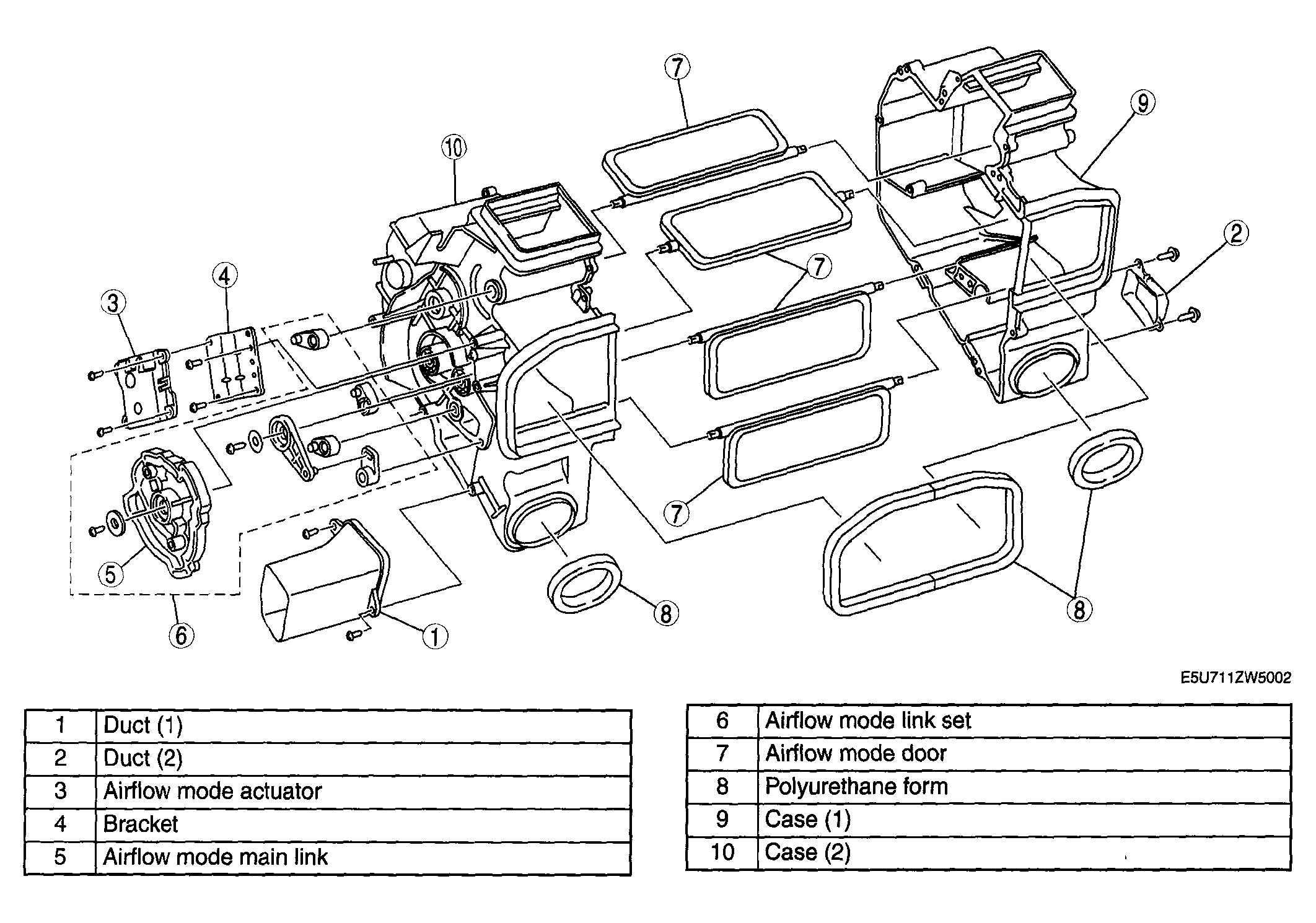

Fig 1: Exploded View Of Air Distribution Unit Components
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
