Power Window Regulator Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.

Power Window Regulator Disassembly/Assembly Table

1	Cover (See Cover Disassembly Note )
2	Power window motor
3	Frame

Assemble in the reverse order of disassembly.

NOTE:

When installing the power window motor, be careful that the cable does not become unwounded from the drum.

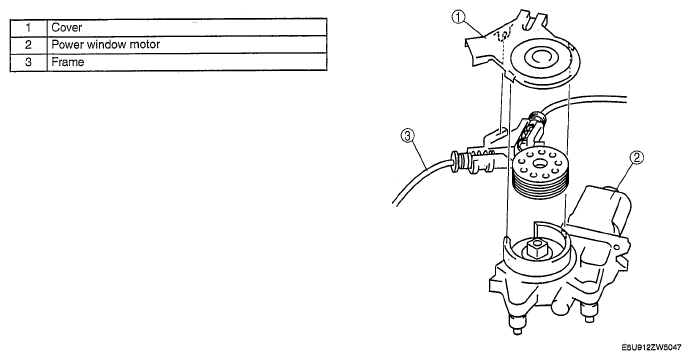

Fig 1: Power Window Regulator Disassembly/Assembly View

Courtesy of MAZDA MOTORS CORP.
