Center Panel Unit Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Before disassembling the center panel unit, spread a cloth on the floor to put the disassembled parts on. This protects the surface of the panel from scratches or dirt.

Disassemble in the order indicated in the illustration.
Assemble in the reverse order of disassembly.

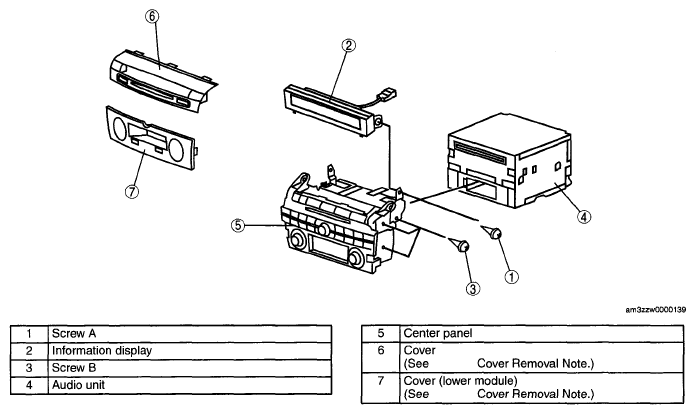

Fig 1: Identifying Center Panel Unit Disassembly Sequence
Courtesy of MAZDA MOTORS CORP.
