Center Panel Unit Removal/Installation: Notes
WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)

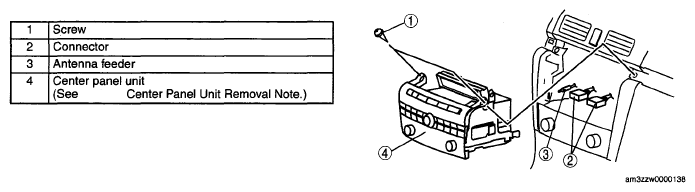

- Remove in the order indicated in the illustration.
- Install in the reverse order of removal.CAUTION:
- When installing the center panel unit, make sure that the wiring harness and antenna feeder are not caught between the unit and dashboard. If the wiring harness or the antenna feeder is caught between the unit and dashboard, it may cause malfunctions.
