Cigarette Lighter Removal/Installation: Notes
WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the ashtray panel. (See CONSOLE REMOVAL/INSTALLATION .)

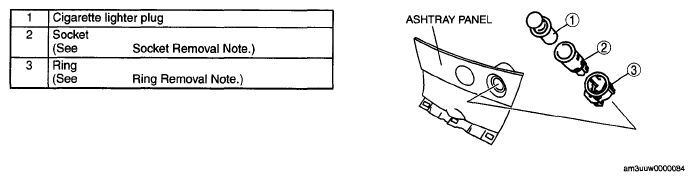

- Remove in the order indicated in the illustration.
- Install in the reverse order of removal.
