Combination Switch Removal/Installation: Notes

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .)
    2. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    3. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    5. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
    6. Lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    7. Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    8. Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

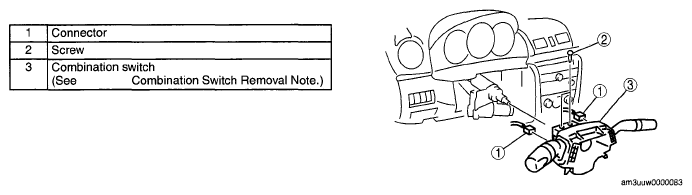

    Fig 1: Identifying Combination Switch Removal Sequence
    G04957025Courtesy of MAZDA MOTORS CORP.
