Inboard Light Installation Note

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Insert the inboard light into the trunk lid (liftgate) as shown in the figure, then pivot it inward and fix in place.

Fig 1: Inserting Inboard Light Into Trunk Lid (Liftgate)
Courtesy of MAZDA MOTORS CORP.

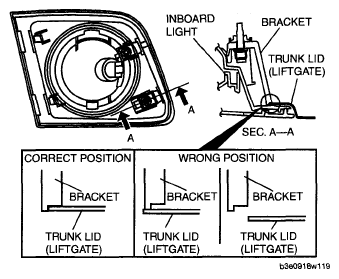

Push the bracket onto the trunk lid (liftgate) as shown in the figure and install.

Fig 2: Pushing Bracket Onto Trunk Lid (Liftgate)
Courtesy of MAZDA MOTORS CORP.
