Front Combination Light Bracket Replacement

WARNING: This page is about a different car, the 2008 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Verify that the front combination light is not damaged before using the repair bracket for installation when the original brackets are damaged. If the front combination light component is damaged, replace the light as a single unit.

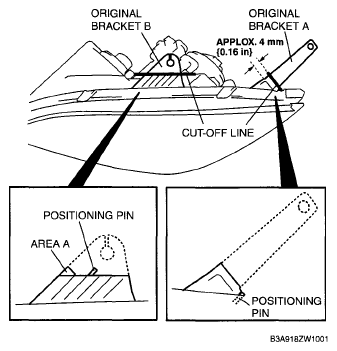

  1. Cut off the front combination light brackets at the locations shown in the figure.
    CAUTION:
    • Be careful that area A shown in the figure (screw installation hole) and the positioning pins are not cut off.
    NOTE:
    • After roughly cutting off the brackets, position the repair bracket using the positioning pins, and gradually smoothen any rough areas to create a shape that facilitates installation.
  2. Smoothen the cut surfaces using sandpaper so that the repair bracket can be properly installed.
    Fig 1: Cutting Off Front Combination Light Brackets
    G04956990Courtesy of MAZDA MOTORS CORP.

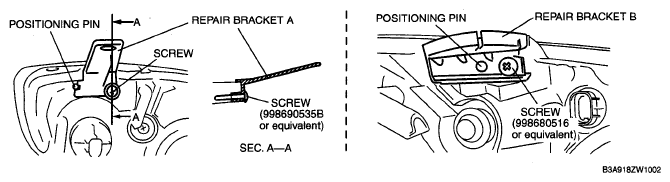

  3. Securely attach the repair bracket to the front combination light using the screws.
    Fig 2: Attaching Repair Bracket To Front Combination Light Using Screws
    G04956991Courtesy of MAZDA MOTORS CORP.
