DTC B2444, U2017: Notes
DTC B2444, U2017 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC |
B2444 |
Driver-side side air bag sensor system (sensor internal circuit abnormal) |
| U2017 |
Driver-side side air bag sensor system (communication error) |
| DETECTION CONDITION |
WARNING:
- Detection conditions are for understanding DTC outline before performing inspection. Performing inspection with only detection conditions may cause injury due to operating error or damage the system. When performing inspection, always follow inspection procedure.
- Malfunction in wiring harness between driver-side side air bag sensor and SAS control module
- Malfunction in driver-side side air bag sensor circuit
|
| POSSIBLE CAUSE |

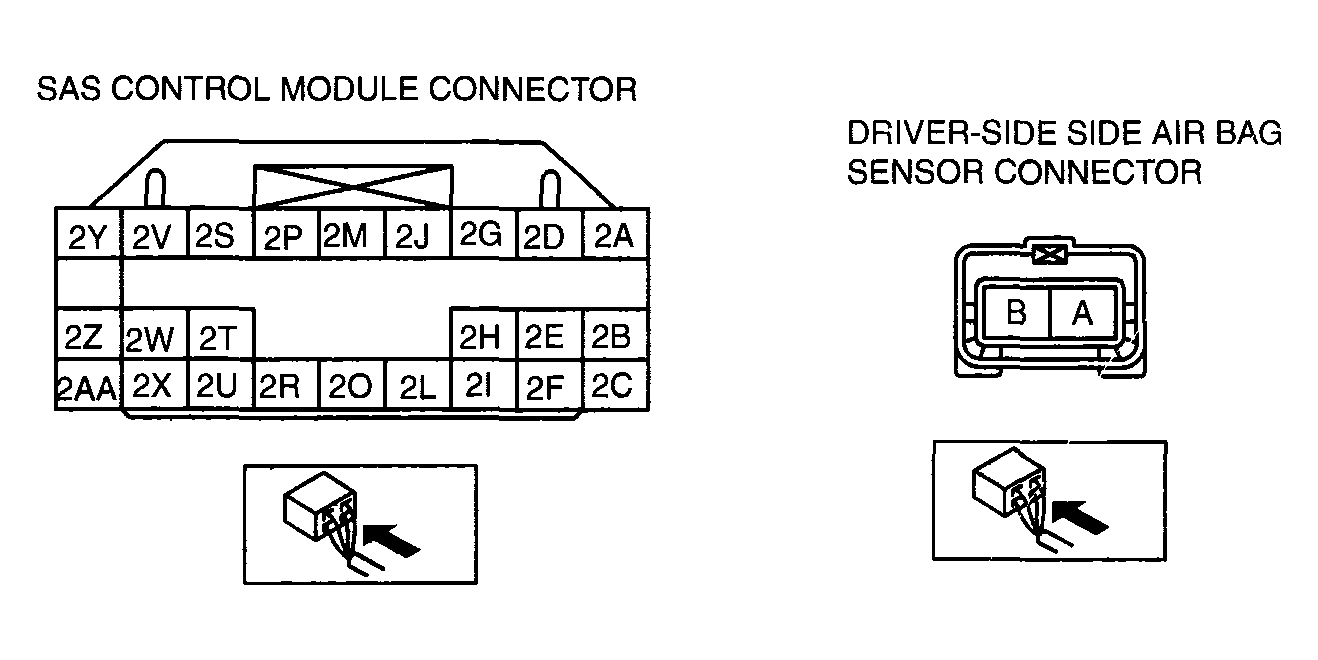

- Open or short circuit in wiring harness between driver-side side air bag sensor and SAS control module
- Driver-side side air bag sensor malfunction
- SAS control module malfunction
|
|
|
