Steering Gear And Linkage Assembly: Notes

CAUTION:

Place copper plates, rag, or similar material in a vise, when secure the mounting bracket portion of the steering gear.

Assemble in the order indicated in the table.

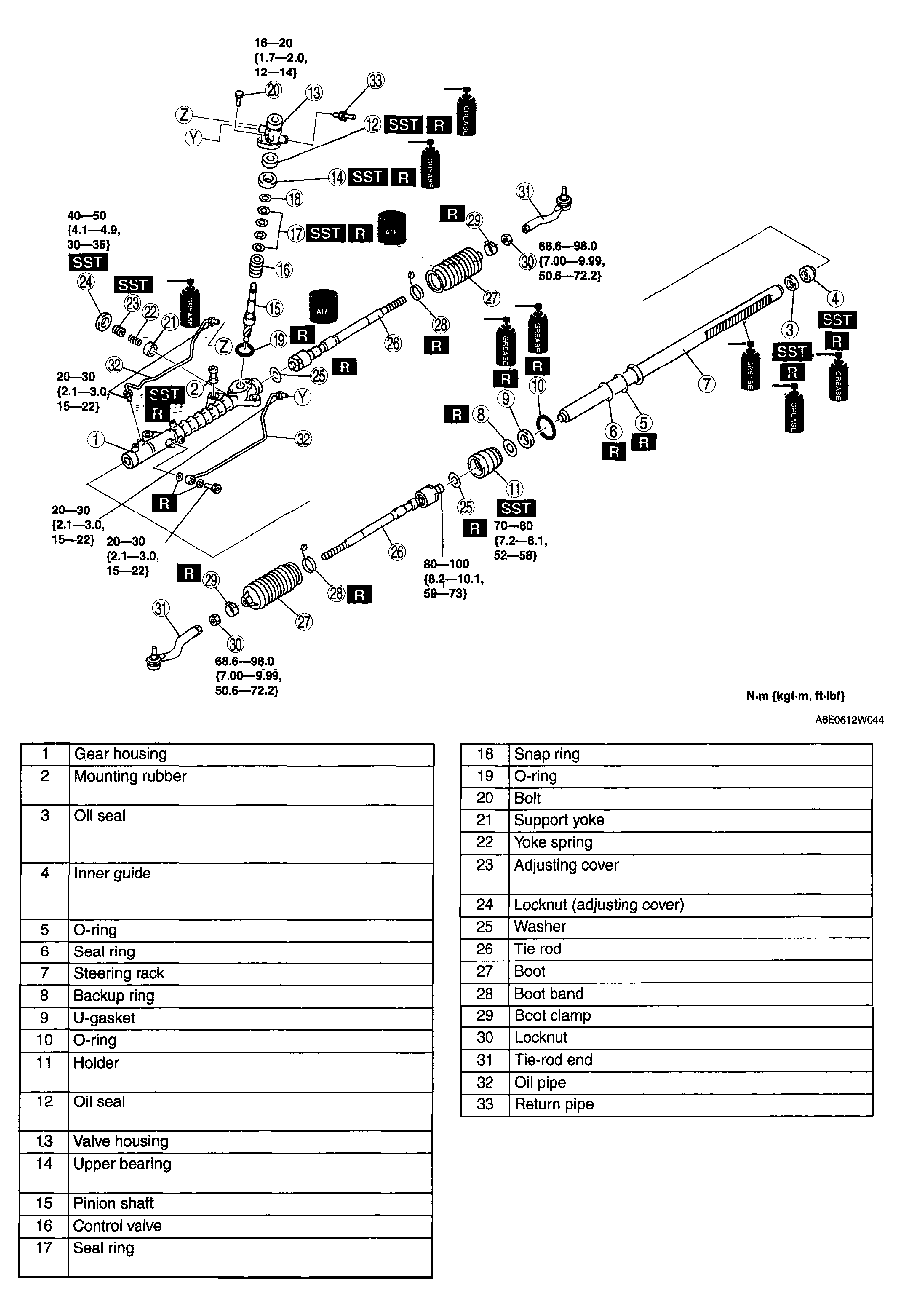

Fig 1: Steering Gear Assembly & Torque Specification
Courtesy of MAZDA MOTORS CORP.
