Service Tools

SERVICE TOOLS DESCRIPTIONS

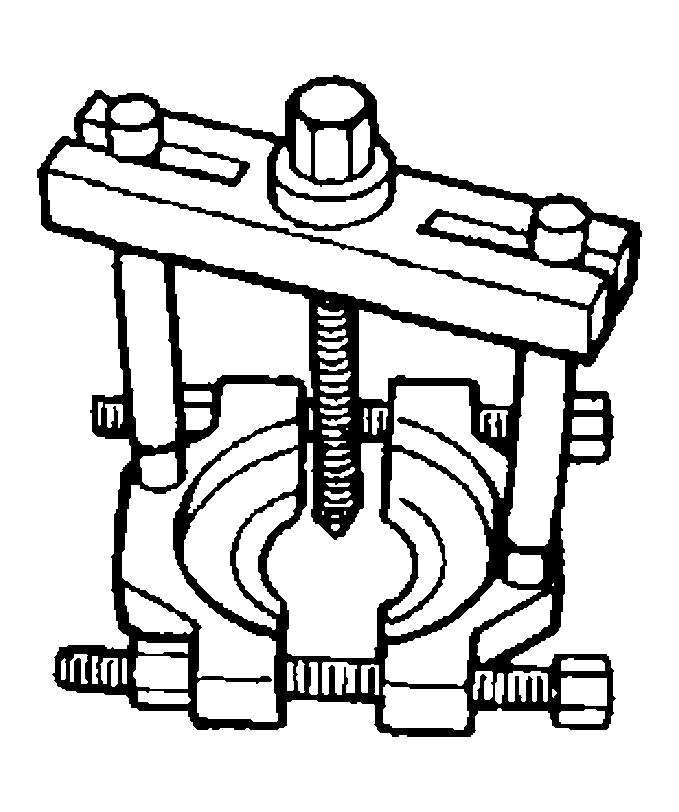

49 0107 680A Engine stand	Courtesy of MAZDA MOTORS CORP.	49G019 0A0 Transaxle hanger set	Courtesy of MAZDA MOTORS CORP.	49 1285 071 Bearing puller	Courtesy of MAZDA MOTORS CORP.
49 W032 2A0 Bearing remover set	Courtesy of MAZDA MOTORS CORP.	49 M005796 Body	Courtesy of MAZDA MOTORS CORP.	49 G030 797 Handle	Courtesy of MAZDA MOTORS CORP.
49 G030 370 Removing plate	Courtesy of MAZDA MOTORS CORP.	49 B019 014 Removing plate	Courtesy of MAZDA MOTORS CORP.	49 0710 520 Bearing puller	Courtesy of MAZDA MOTORS CORP.
49 0839 425C Bearing puller set	Courtesy of MAZDA MOTORS CORP.	49 F401 336B Attachment B	Courtesy of MAZDA MOTORS CORP.	49 S231 626 Support block	Courtesy of MAZDA MOTORS CORP.
49 V001 525 Bearing installer	Courtesy of MAZDA MOTORS CORP.	49 W017 101 Clutch hub remover	Courtesy of MAZDA MOTORS CORP.	49 N017 101 Plate	Courtesy of MAZDA MOTORS CORP.
49 G027 002 Removing plate	Courtesy of MAZDA MOTORS CORP.	49 F401 337A Attachment C	Courtesy of MAZDA MOTORS CORP.	49 F401 331 Body	Courtesy of MAZDA MOTORS CORP.
49F026 103 Wheel hub puller	Courtesy of MAZDA MOTORS CORP.	49 G017 204 Remover	Courtesy of MAZDA MOTORS CORP.	49 U027 003 Oil seal installer	Courtesy of MAZDA MOTORS CORP.
49 G030 338 Attachment E	Courtesy of MAZDA MOTORS CORP.	49 0727 415 Bearing installer	Courtesy of MAZDA MOTORS CORP.	49 0187 520 Rear axle bearing puller	Courtesy of MAZDA MOTORS CORP.
49 H026 108 Removing plate	Courtesy of MAZDA MOTORS CORP.	49 H028 202 Block L	Courtesy of MAZDA MOTORS CORP.	49 G027 006 Installer	Courtesy of MAZDA MOTORS CORP.
49 P005 205 Oil seal installer	Courtesy of MAZDA MOTORS CORP.	49 F028 204 Bush installer	Courtesy of MAZDA MOTORS CORP.	49 S120 620 Bearing installer	Courtesy of MAZDA MOTORS CORP.
49 G019 017 Oil seal installer	Courtesy of MAZDA MOTORS CORP.	49 J027 001 Bearing installer	Courtesy of MAZDA MOTORS CORP.	49 W027 003 Bearing installer	Courtesy of MAZDA MOTORS CORP.
49 G027 007 Preload Adapter	Courtesy of MAZDA MOTORS CORP.	49 G033 102 Handle	Courtesy of MAZDA MOTORS CORP.	49 D034 203 Puller & installer	Courtesy of MAZDA MOTORS CORP.
49 F027 009 Attachment for 68&77	Courtesy of MAZDA MOTORS CORP.	49 W027 001 Body	Courtesy of MAZDA MOTORS CORP.	49 B012 004 Valve seal pusher	Courtesy of MAZDA MOTORS CORP.
