Differential Assembly: Notes

CAUTION:
  • Do not place the bearing (ring gear side) facing downward on a workbench after assembling the differential component. It may cause damage to the bearing roller guide.
  1. Assemble in the order shown in the figure.

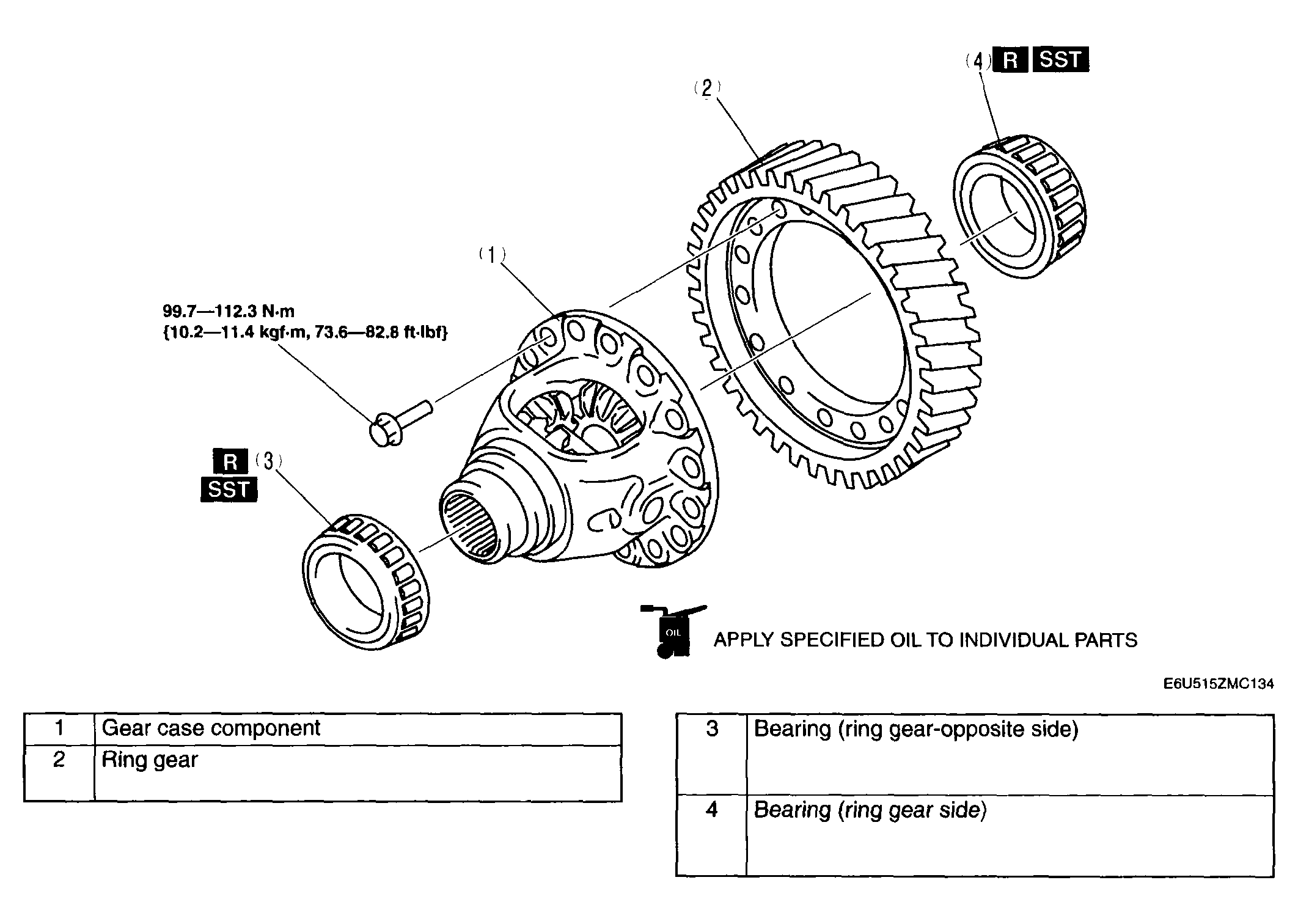

Fig 1: Assembling Differential Assembly & Torque Specification
G04331009Courtesy of MAZDA MOTORS CORP.
