Clutch Master Cylinder Disassembly/Assembly [A26MX-R]: Notes

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

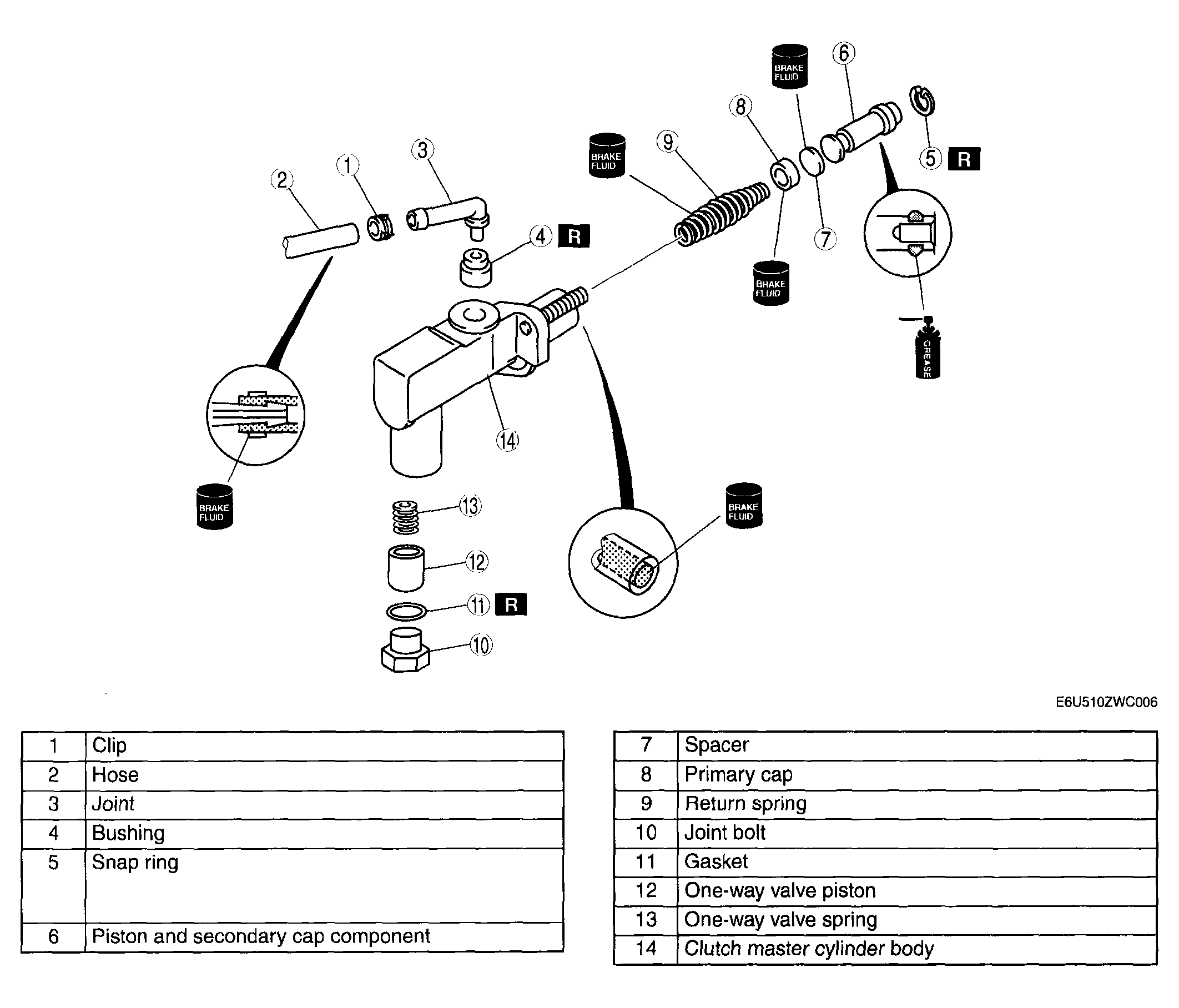

    Fig 1: Clutch Master Cylinder Components (A26MX-R)
    G04326083Courtesy of MAZDA MOTORS CORP.
