Clutch Master Cylinder Disassembly/Assembly [G35M-R, A65M-R]: Notes

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

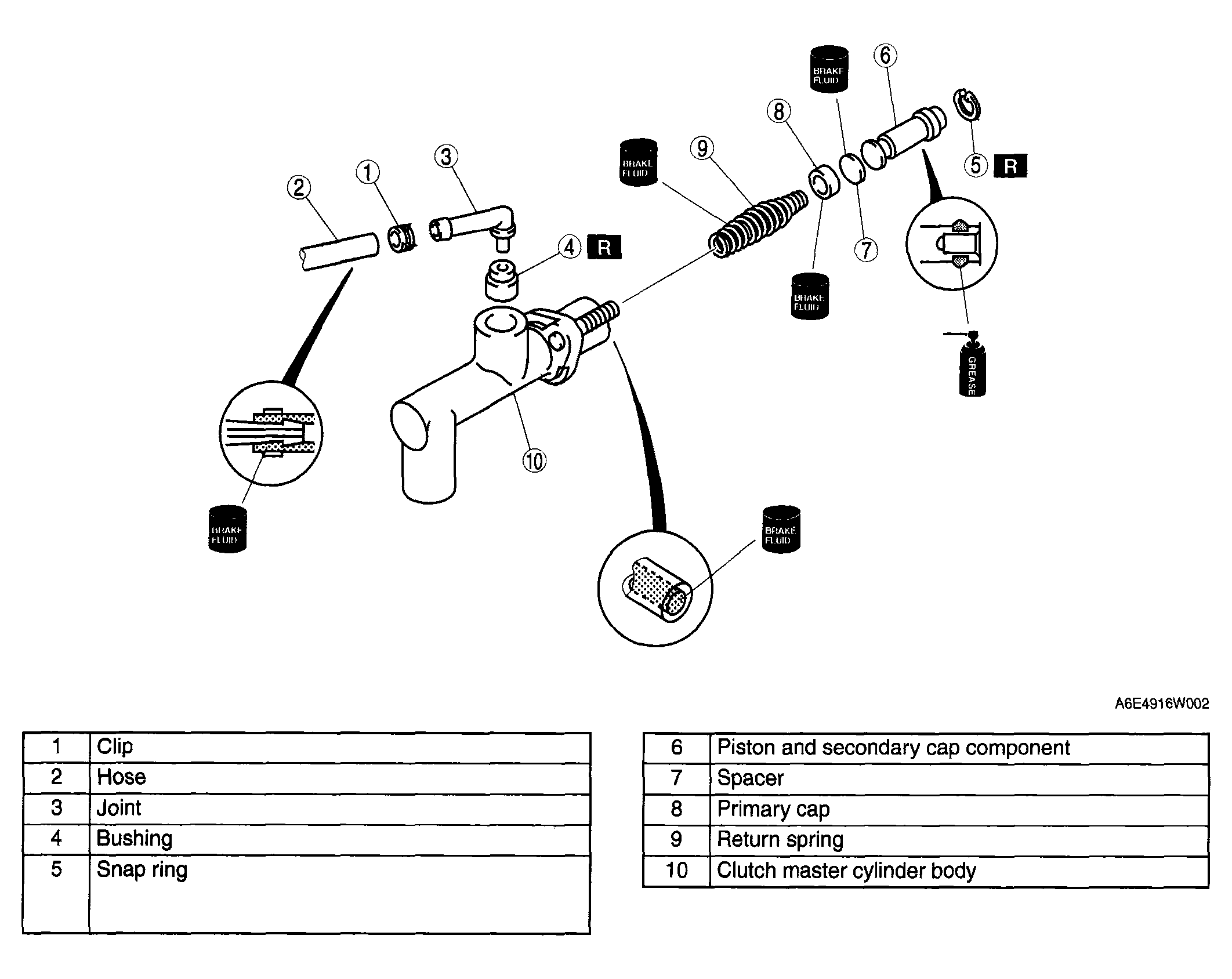

    Fig 1: Clutch Master Cylinder Components
    G04326081Courtesy of MAZDA MOTORS CORP.
