Clutch Release Cylinder Disassembly/Assembly [G35M-R, A65M-R]

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

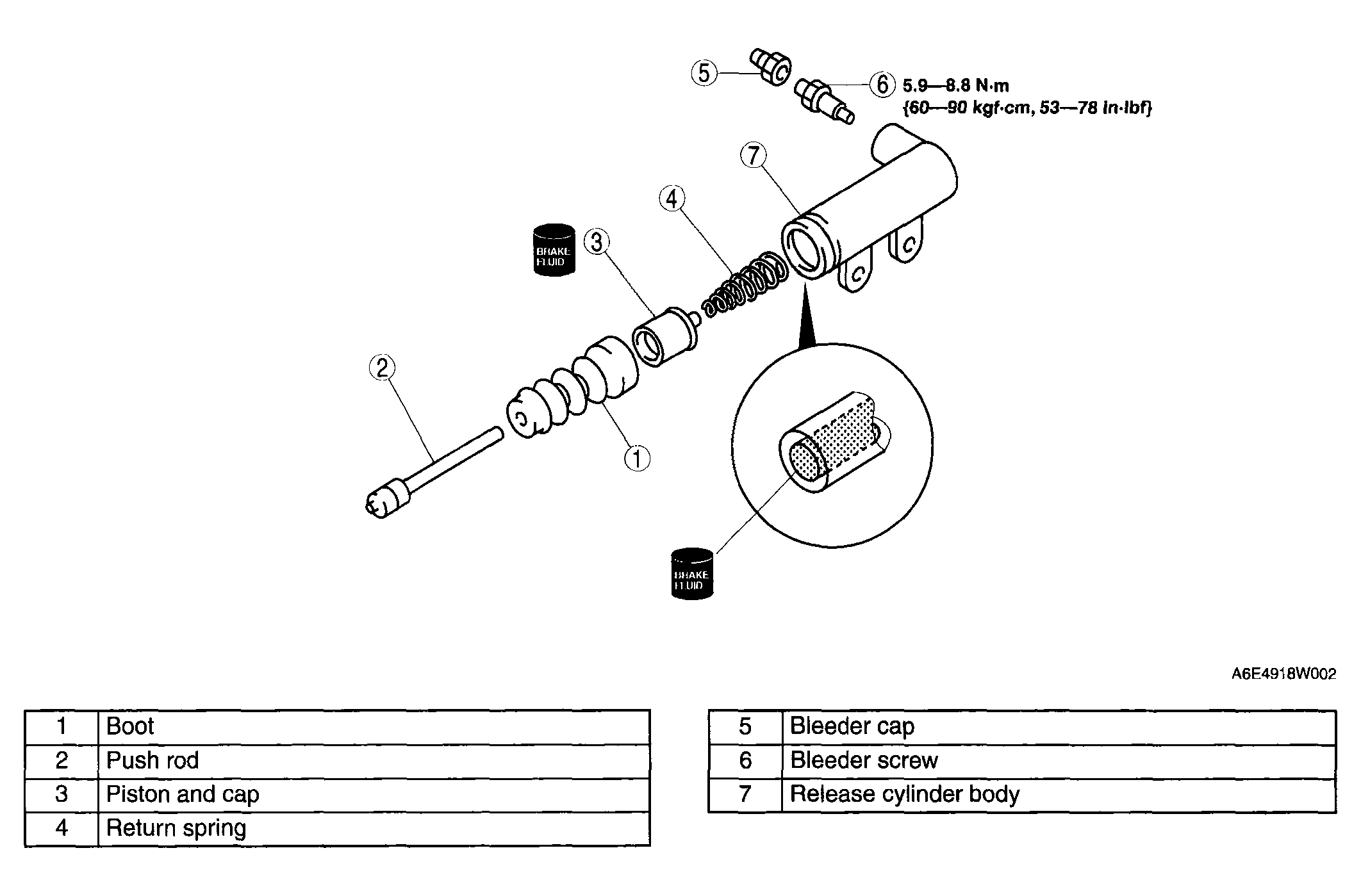

    Fig 1: Clutch Release Cylinder & Torque Specification
    G04326088Courtesy of MAZDA MOTORS CORP.
