G35M-R manual transaxle models

Install the SSTs.
Tighten the bolts evenly and gradually in a crisscross pattern.
Tightening torque

25-33 N.m {2.6-3.3 kgf.m, 19-24 ft.lbf}

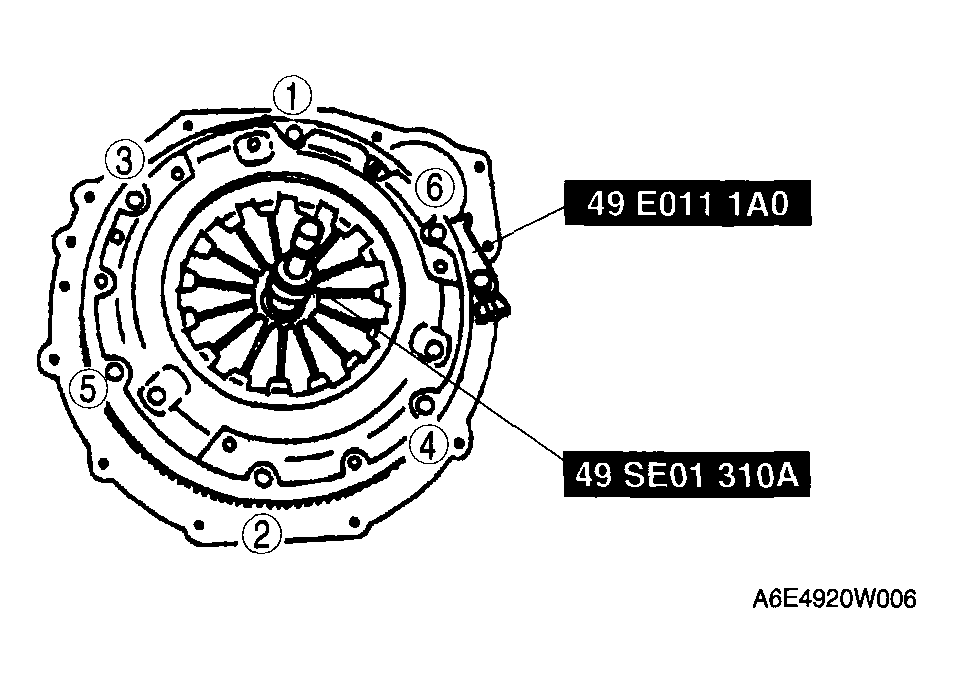

Fig 1: Clutch Cover Bolt Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
