A65M-R manual transaxle models

  1. Install the clutch aligner and the SST.
  2. Loosen each bolt one turn at a time in a crisscross pattern until spring tension is released.
  3. Remove the clutch cover and disc.

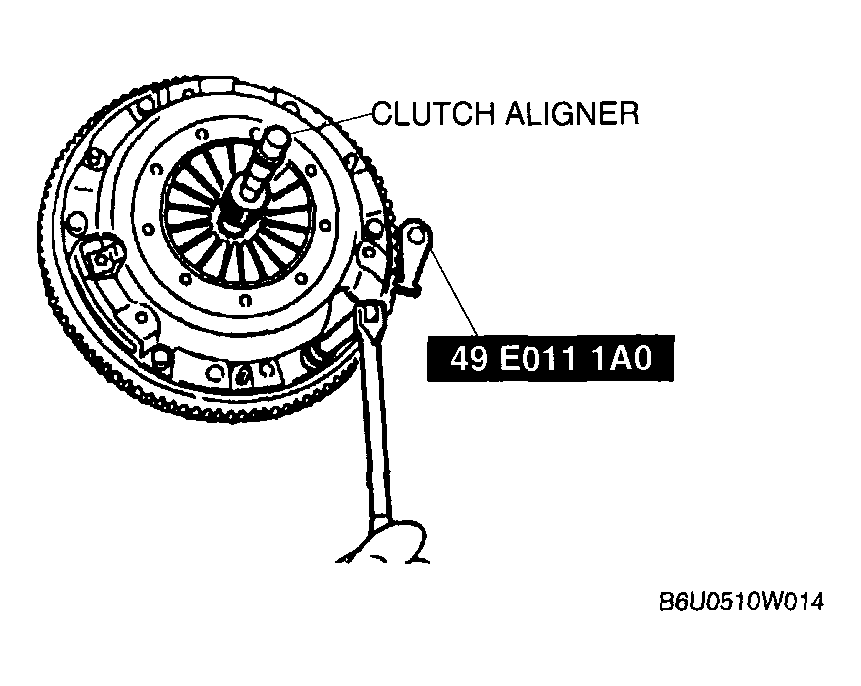

    Fig 1: Loosening Bolt
    G04326093Courtesy of MAZDA MOTORS CORP.
