G35M-R Manual Transaxle Models

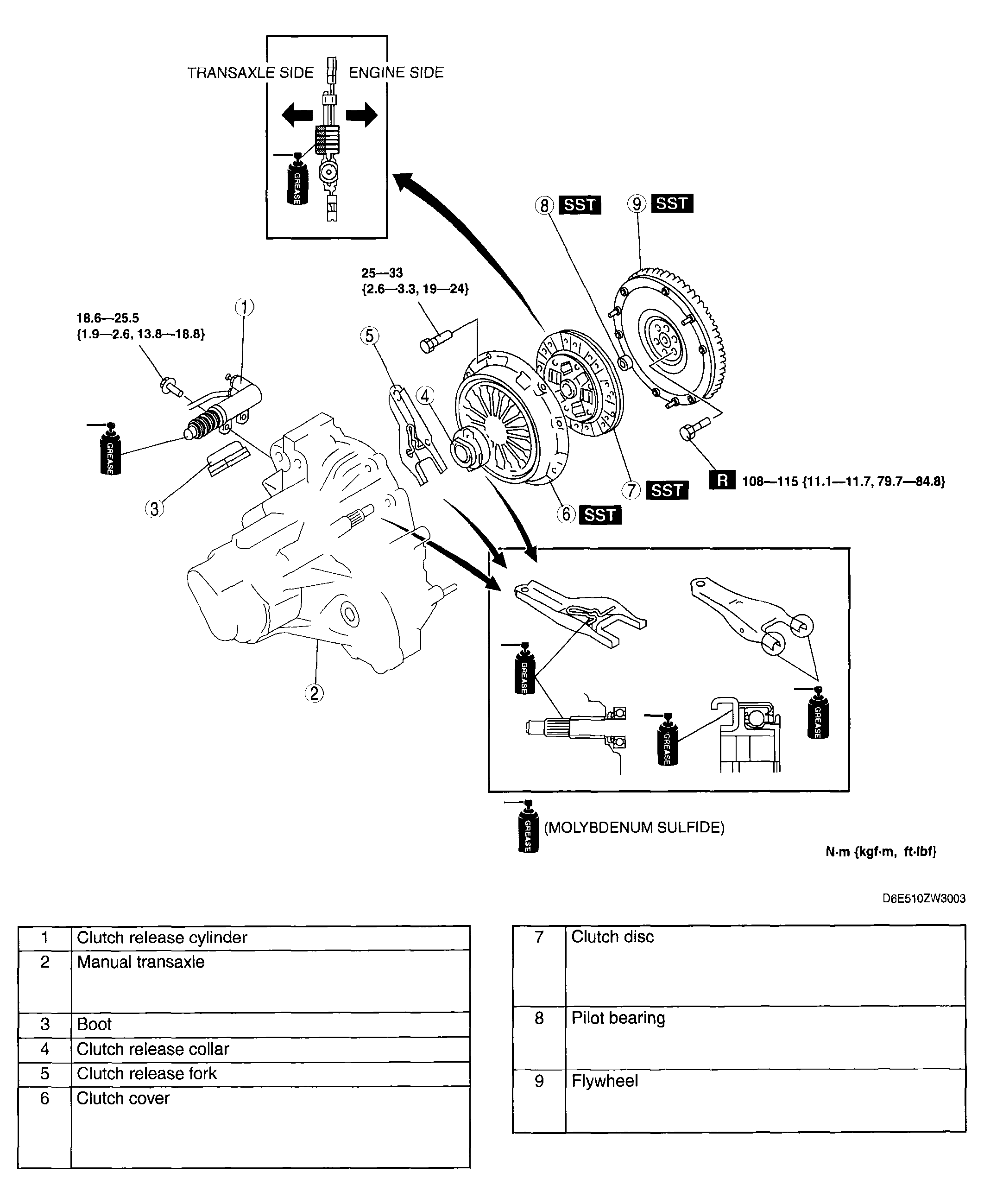

Fig 1: Clutch Unit & Torque Specification (G35M-R)

G04326090

Courtesy of MAZDA MOTORS CORP.
