Component Locations

Control System Component Location Index Part 1:



Control System Component Location Index Part 2:

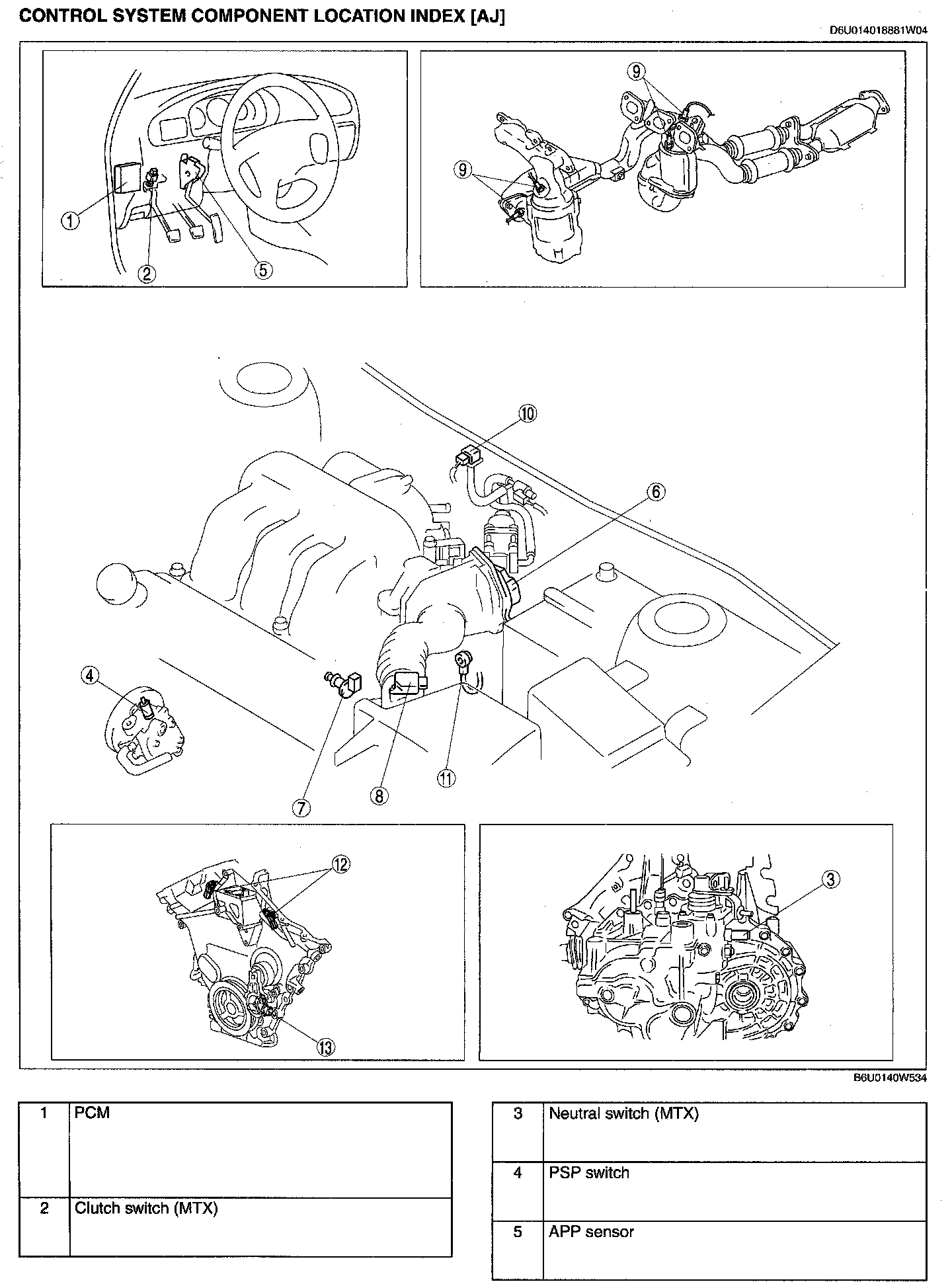

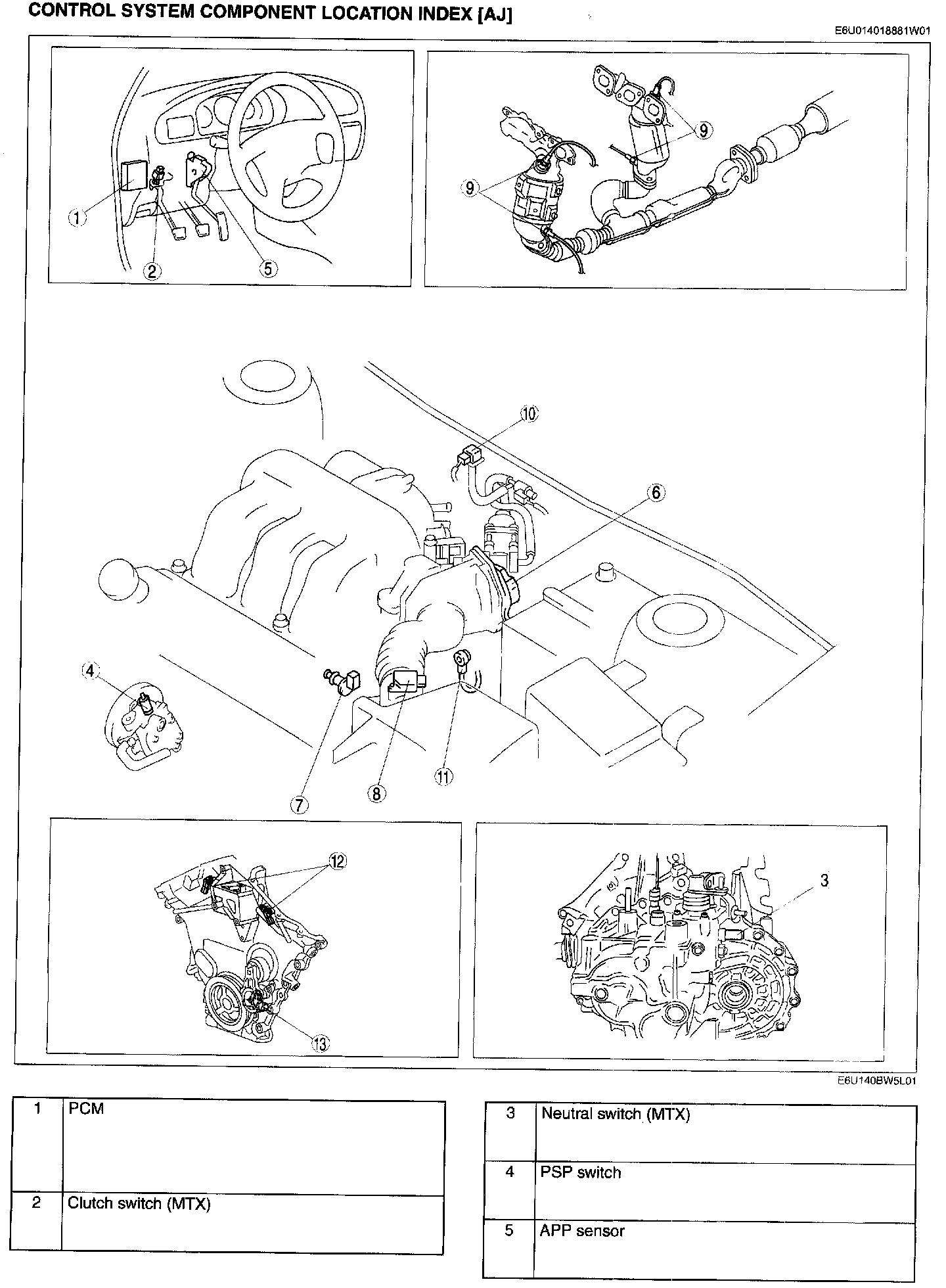

Control System Component Location Index[AJ]:
