California Emission Regulation Applicable ATX Model

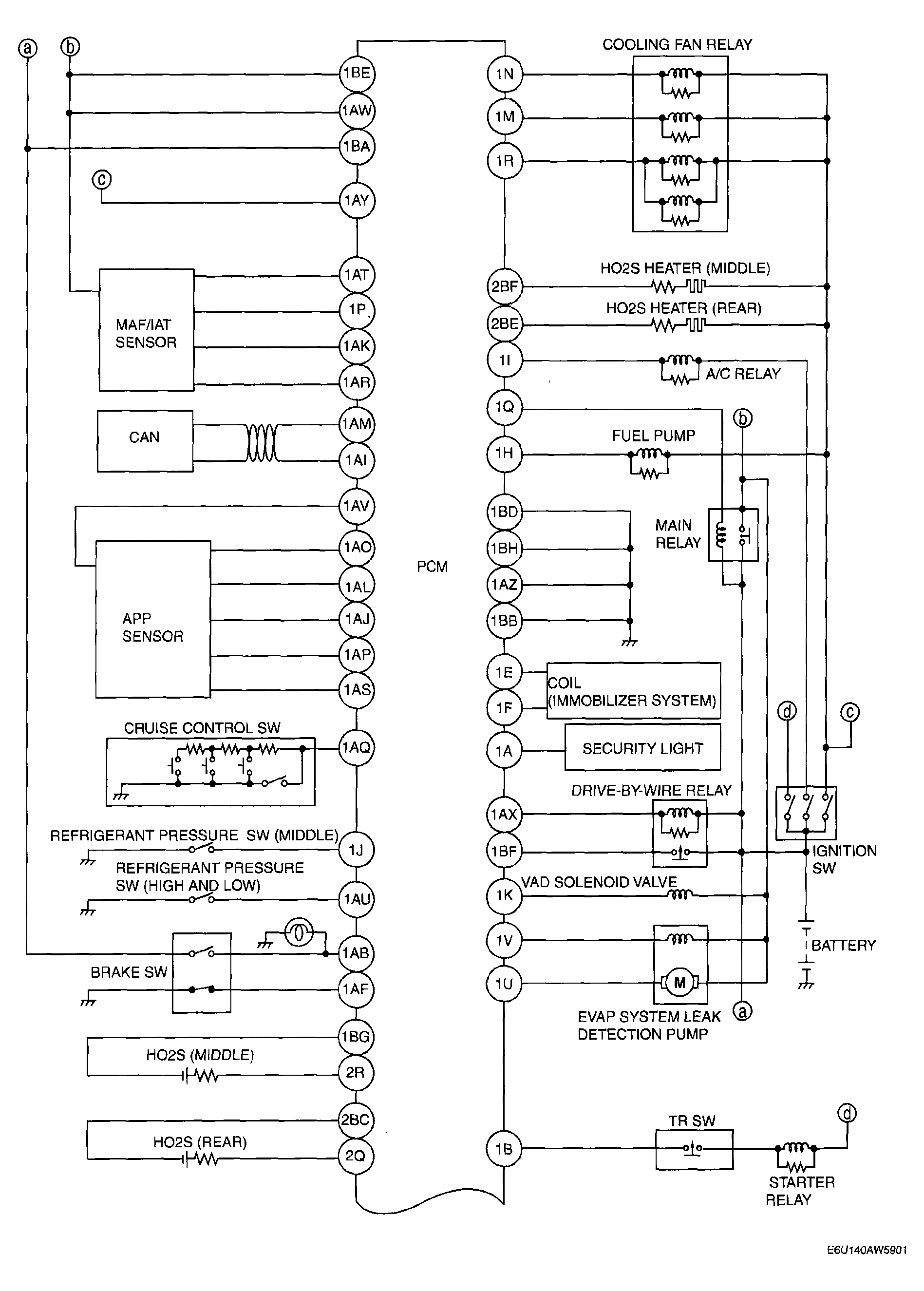

Fig 1: California Emission Regulation Applicable ATX Model - Control System Wiring Diagram (1 Of 2)
G04325114Courtesy of MAZDA MOTORS CORP.
Fig 2: California Emission Regulation Applicable ATX Model - Control System Wiring Diagram (2 Of 2)
G04325115Courtesy of MAZDA MOTORS CORP.
