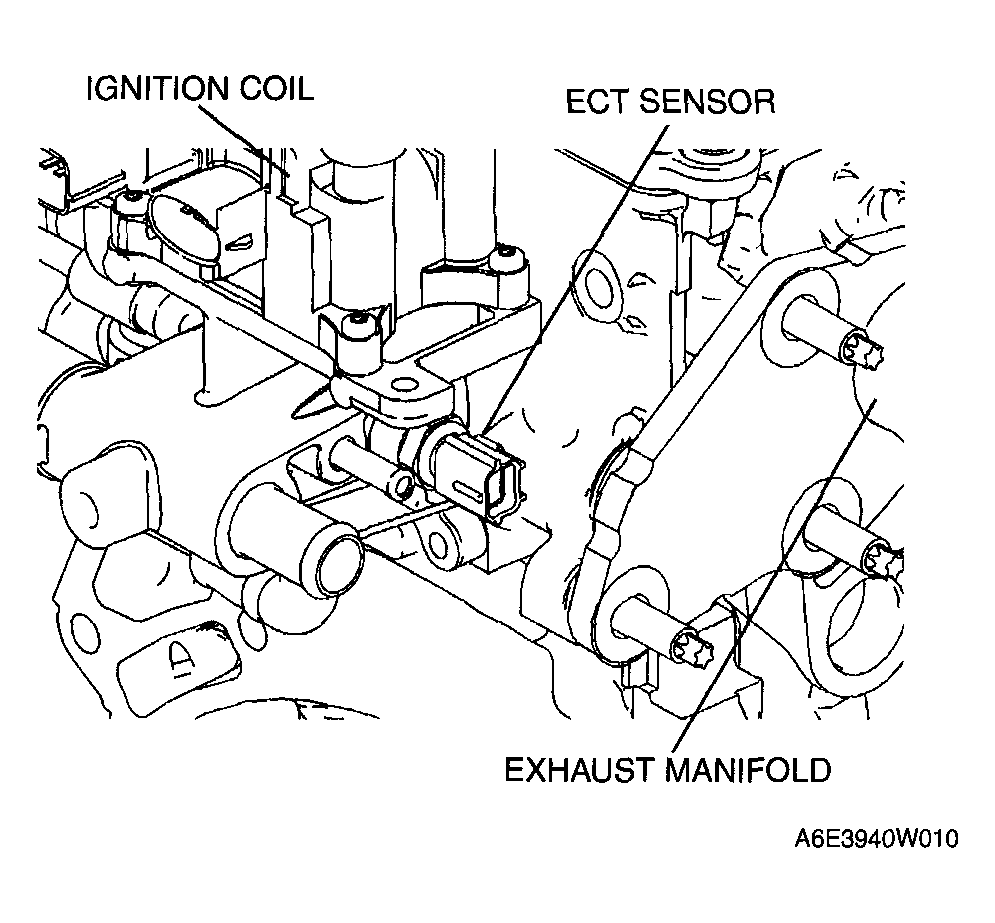

Engine Coolant Temperature (ECT) Sensor Removal/Installation
WARNING:
- A hot engine can cause severe burns. Turn off the engine and wait until it is cool before removing the ECT sensor.
- Drain the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS ).
- Disconnect the ECT sensor connector.
- Remove the ECT sensor.
- Install in the reverse order of removal.
Tightening torque
10-14 N.m
{1.02-1.42 kgf.m, 7.38-10.32 ft.lbf}
- Refill the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS ).
