Circuit Open/Short Inspection: Notes

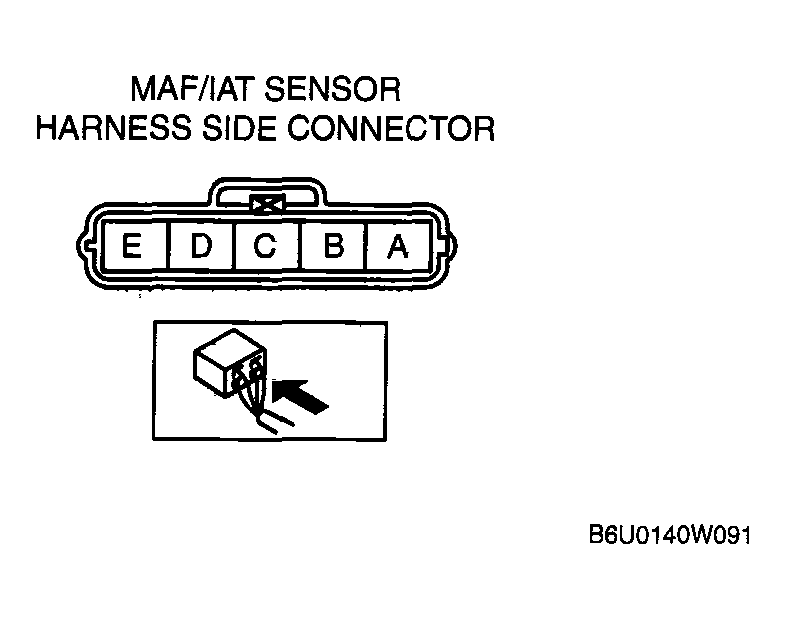

Fig 1: Identifying MAF/IAT Harness Side Connector Terminals
G04325160Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION ).
  2. Inspect the following wiring harnesses for open or short circuit. (Continuity, inspection)
