Control System Device And Control Relationship Chart

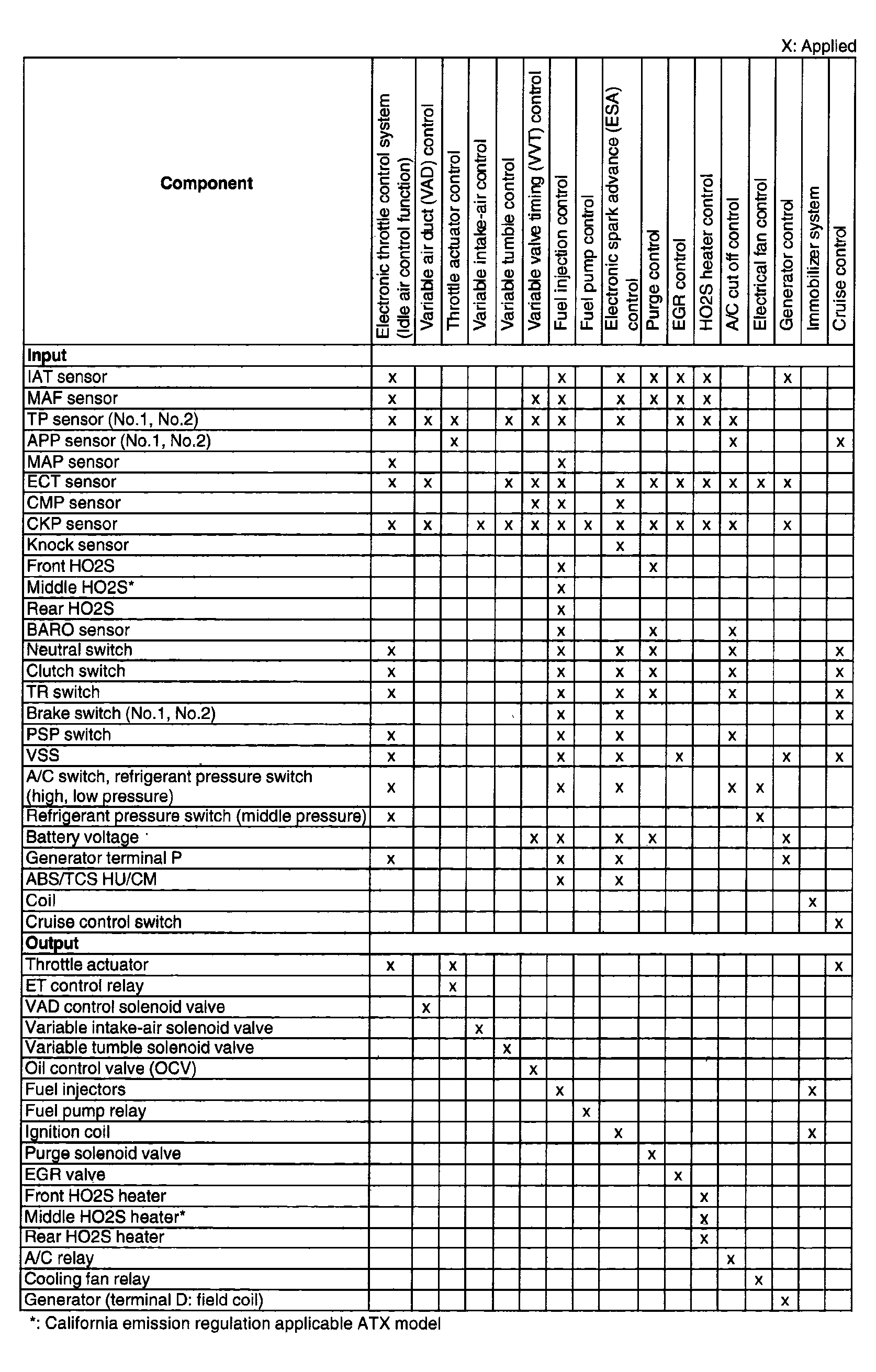

Fig 1: Control System Device And Control Relationship Chart (L3)
G04324230Courtesy of MAZDA MOTORS CORP.
