Quick Diagnostic Chart

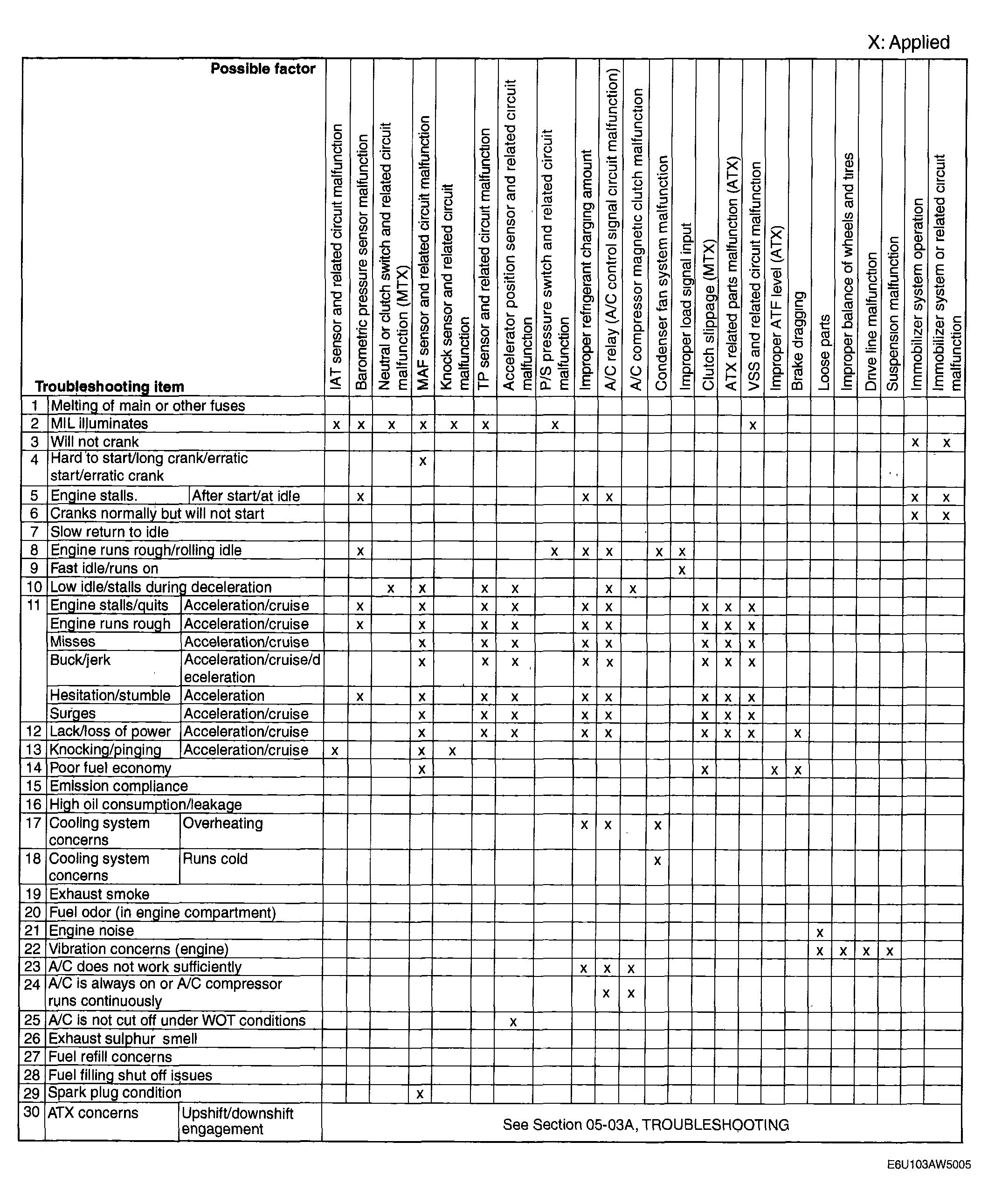

Fig 1: Quick Diagnostic Chart (L3) (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

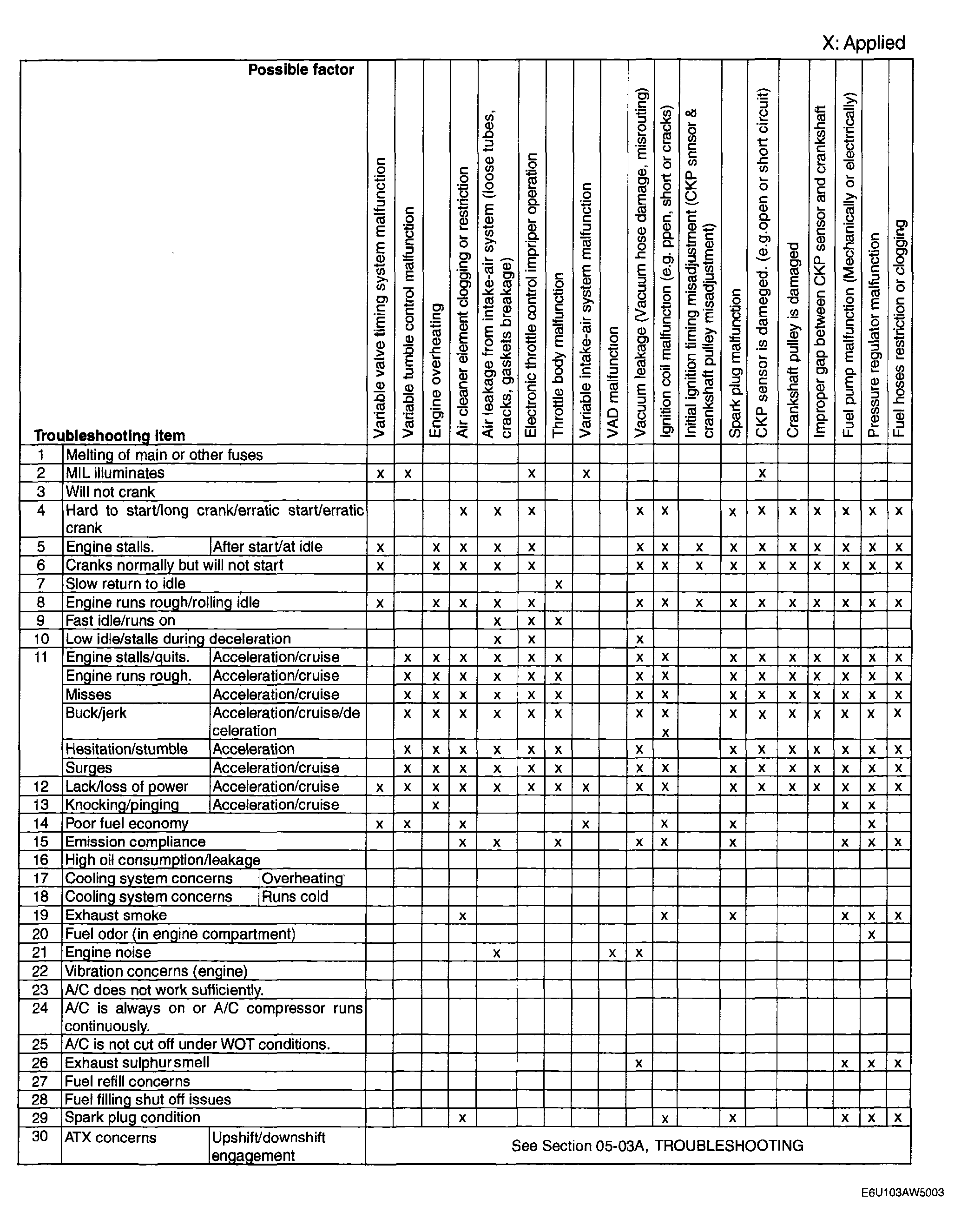

Fig 2: Quick Diagnostic Chart (L3) (2Of 4)
Courtesy of MAZDA MOTORS CORP.

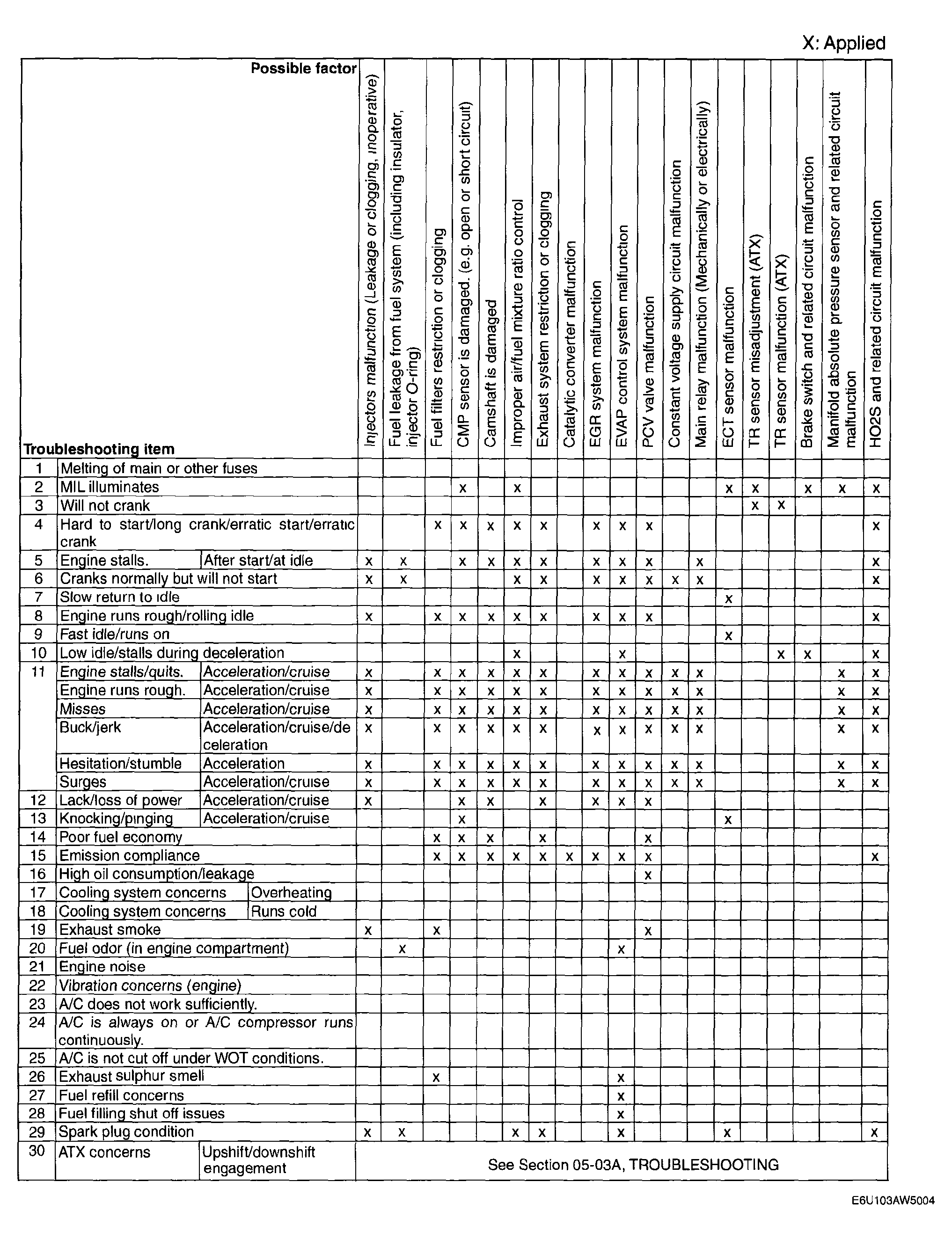

Fig 3: Quick Diagnostic Chart (L3) (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

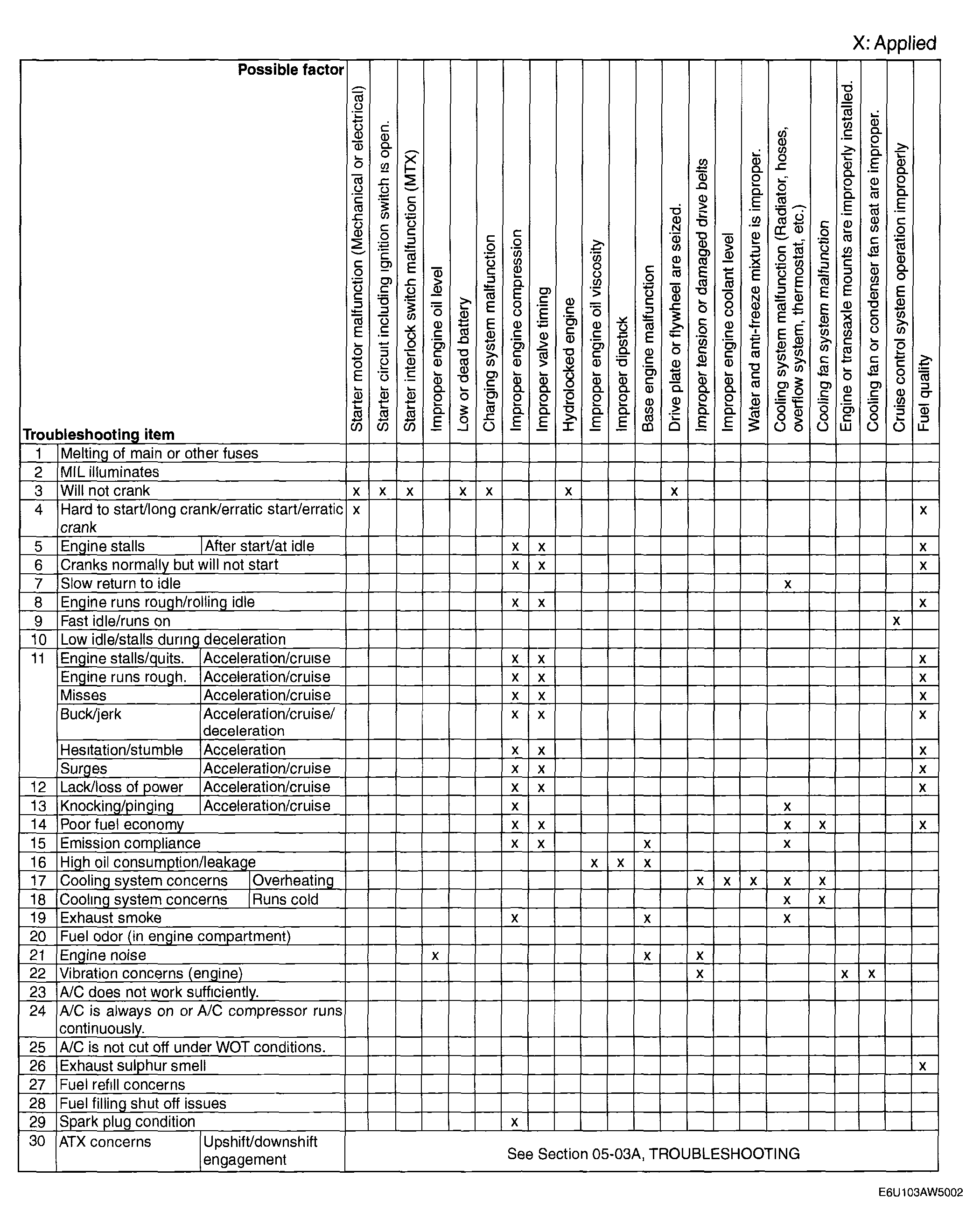

Fig 4: Quick Diagnostic Chart (L3) (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
