Front HO2S circuit open/short inspection (sensor): Notes

  1. Disconnect the PCM connector.
  2. Disconnect the front HO2S connector.
  3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)

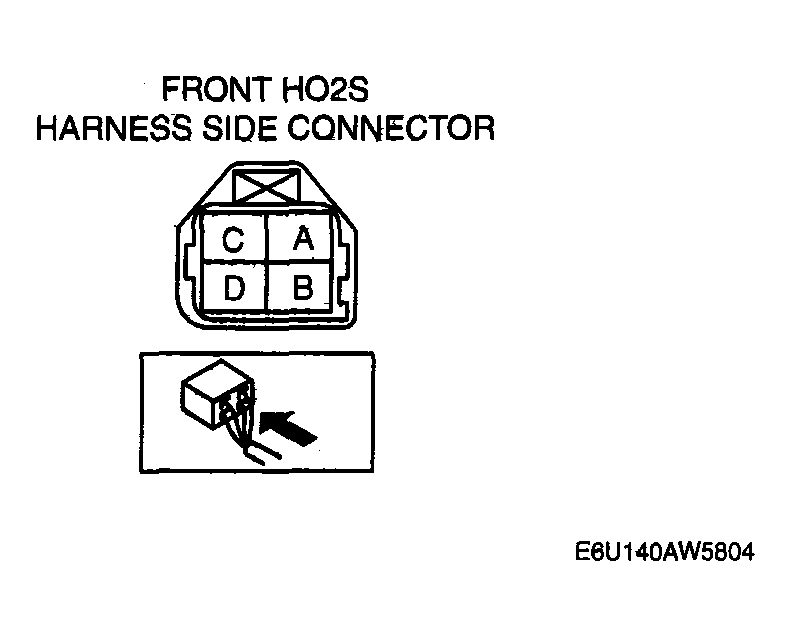

    Fig 1: Identifying Front HO2S Harness Side Connector Terminals
    G04325170Courtesy of MAZDA MOTORS CORP.
