Symptom Quick Diagnosis Chart

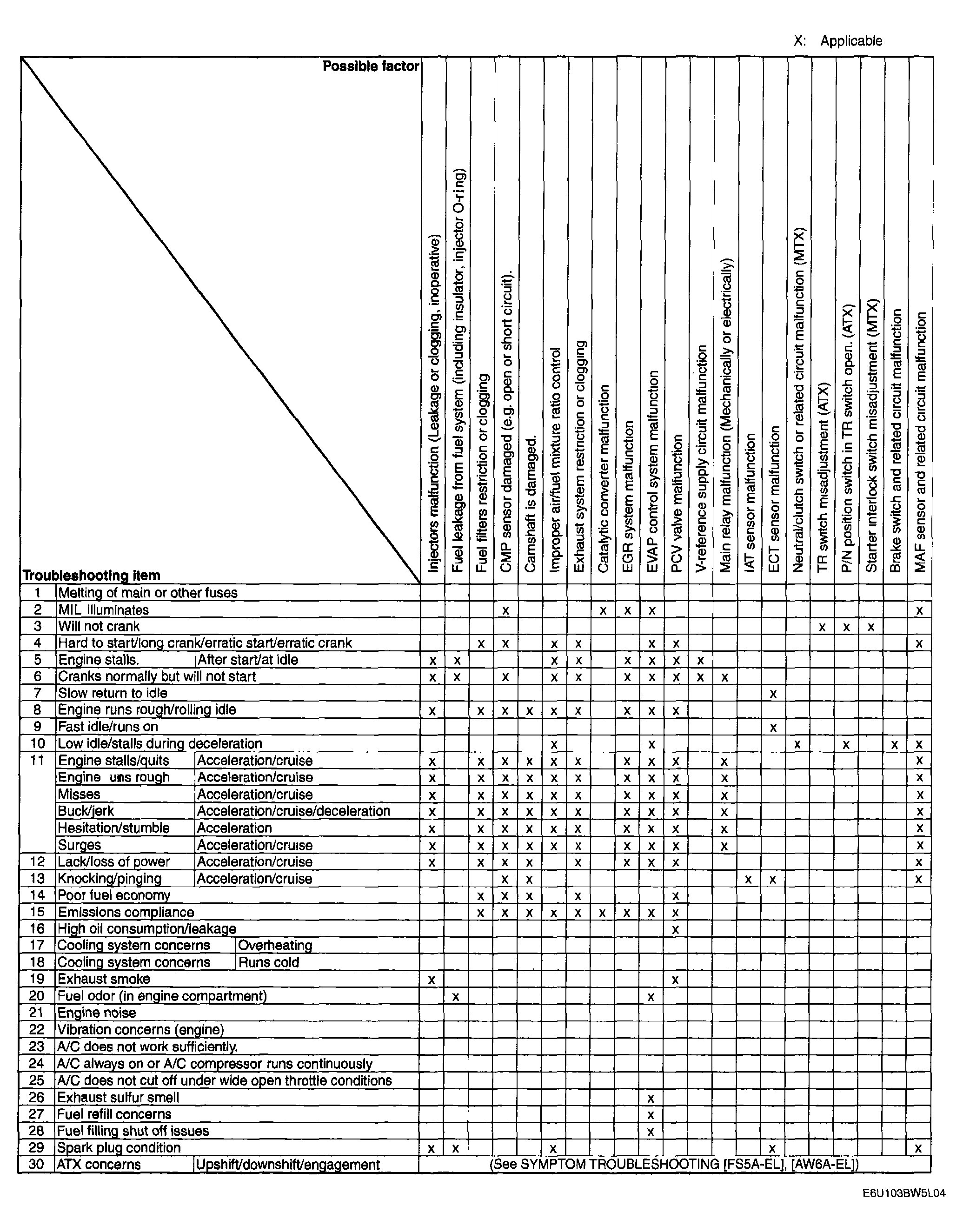

Fig 1: Symptom Quick Diagnosis Chart [AJ] (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

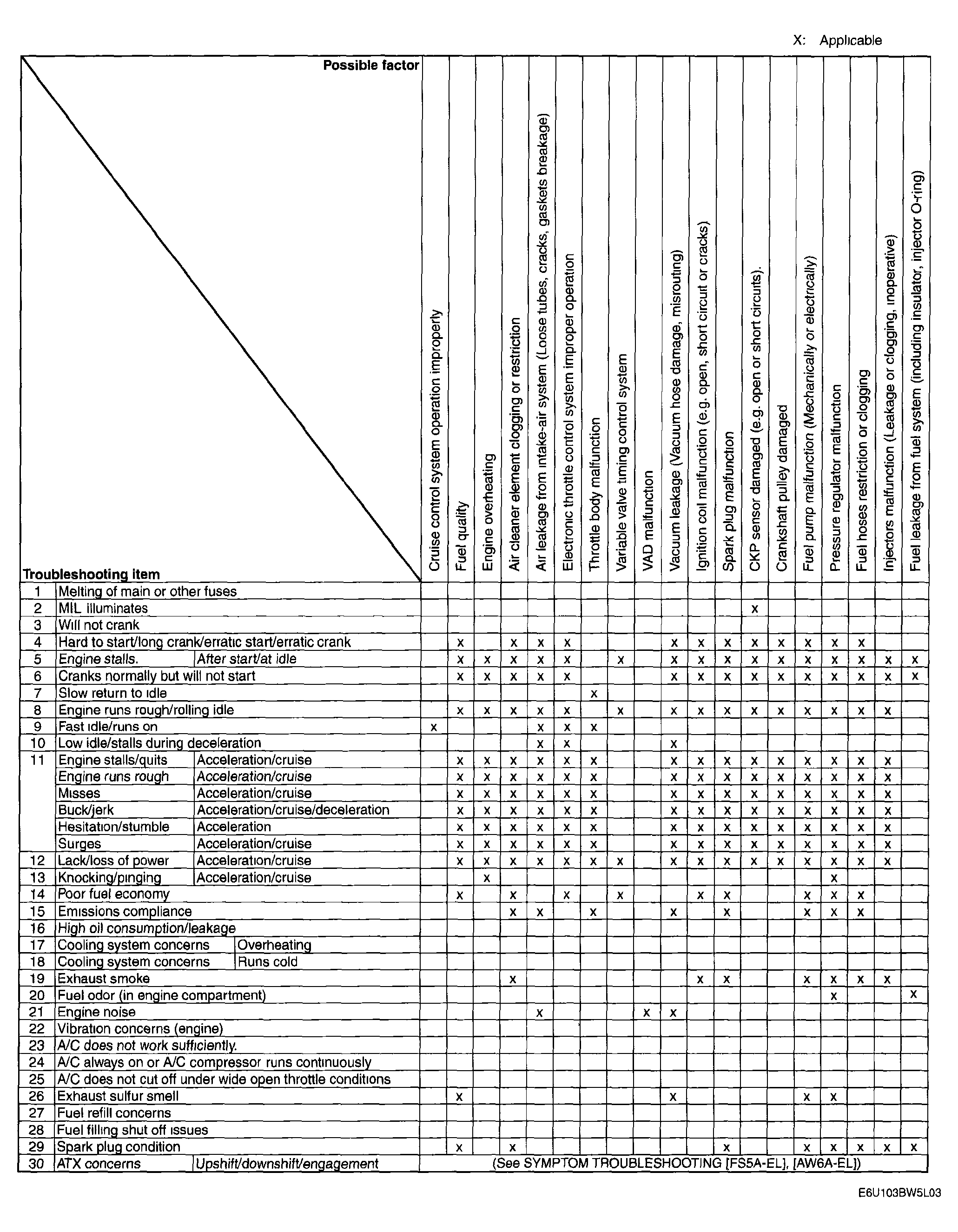

Fig 2: Symptom Quick Diagnosis Chart [AJ] (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

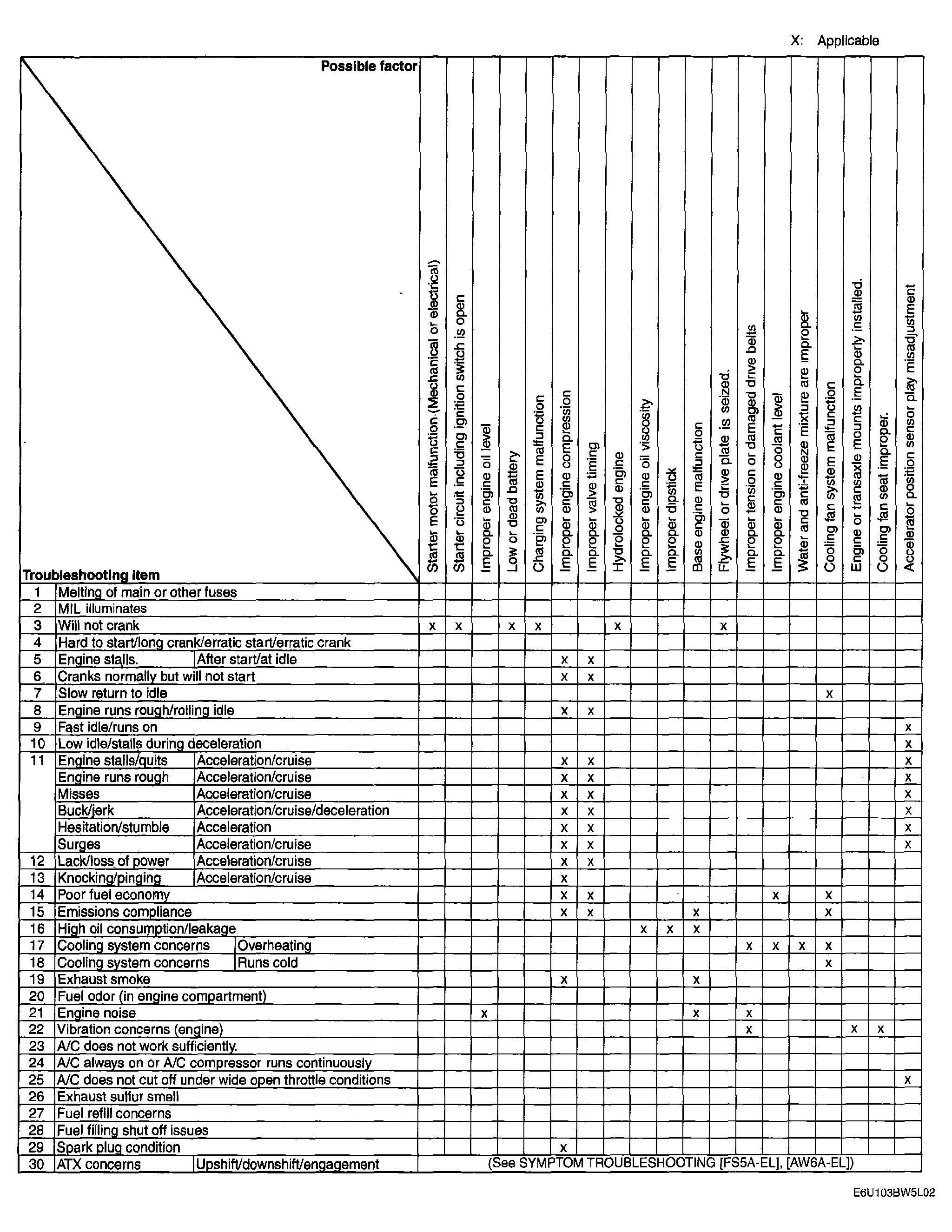

Fig 3: Symptom Quick Diagnosis Chart [AJ] (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

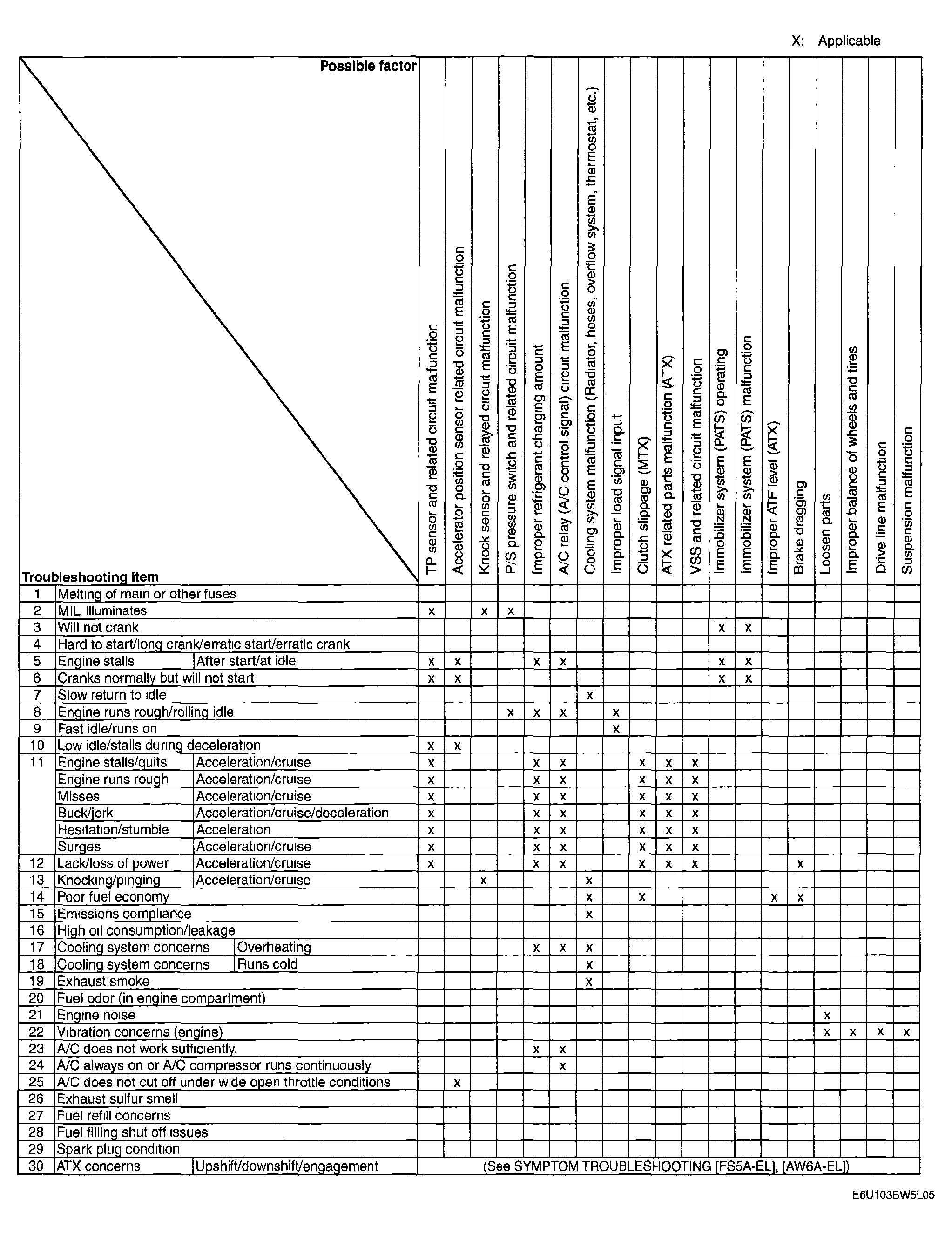

Fig 4: Symptom Quick Diagnosis Chart [AJ] (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
