Power Window Subswitch

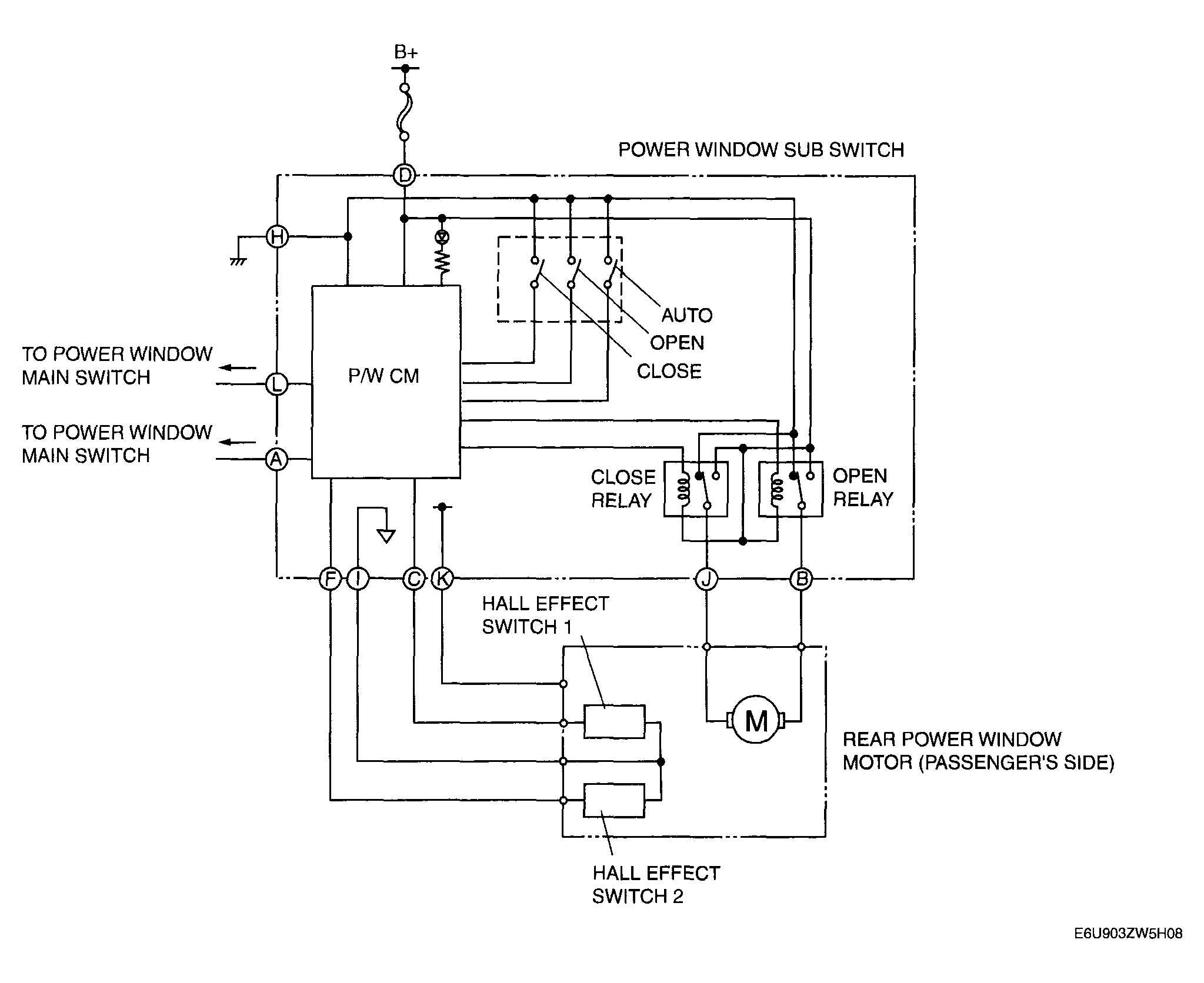

Fig 1: Power Window Subswitch - Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
