Mat Set End Plate Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Turn the weatherstrip over.
Disengage clips A and pins B using a fastener remover, and remove the mat set end plate.

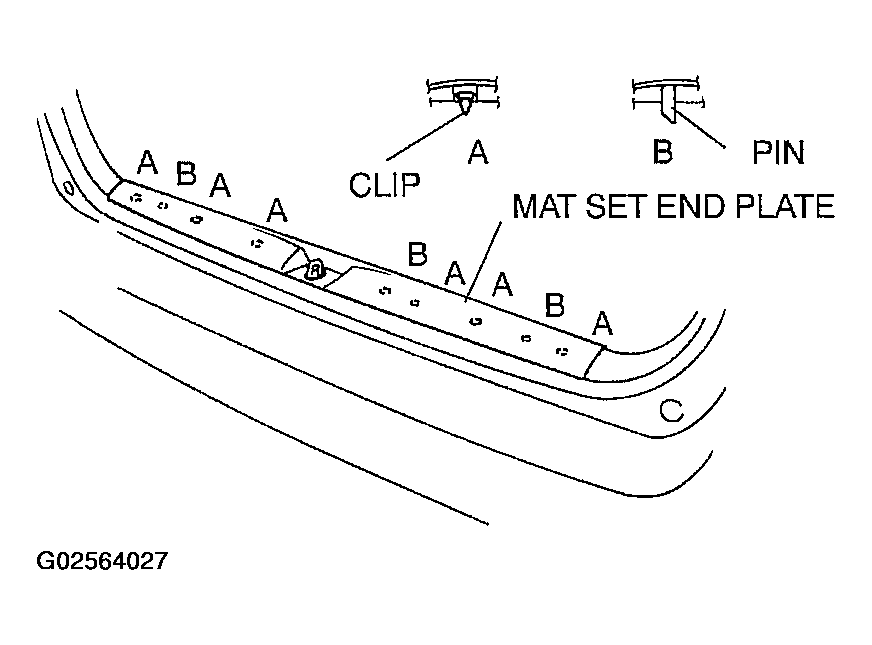

Fig 1: Locating Mat Set End Plate Clips & Pins
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
