Connector End Views - Cruise Control

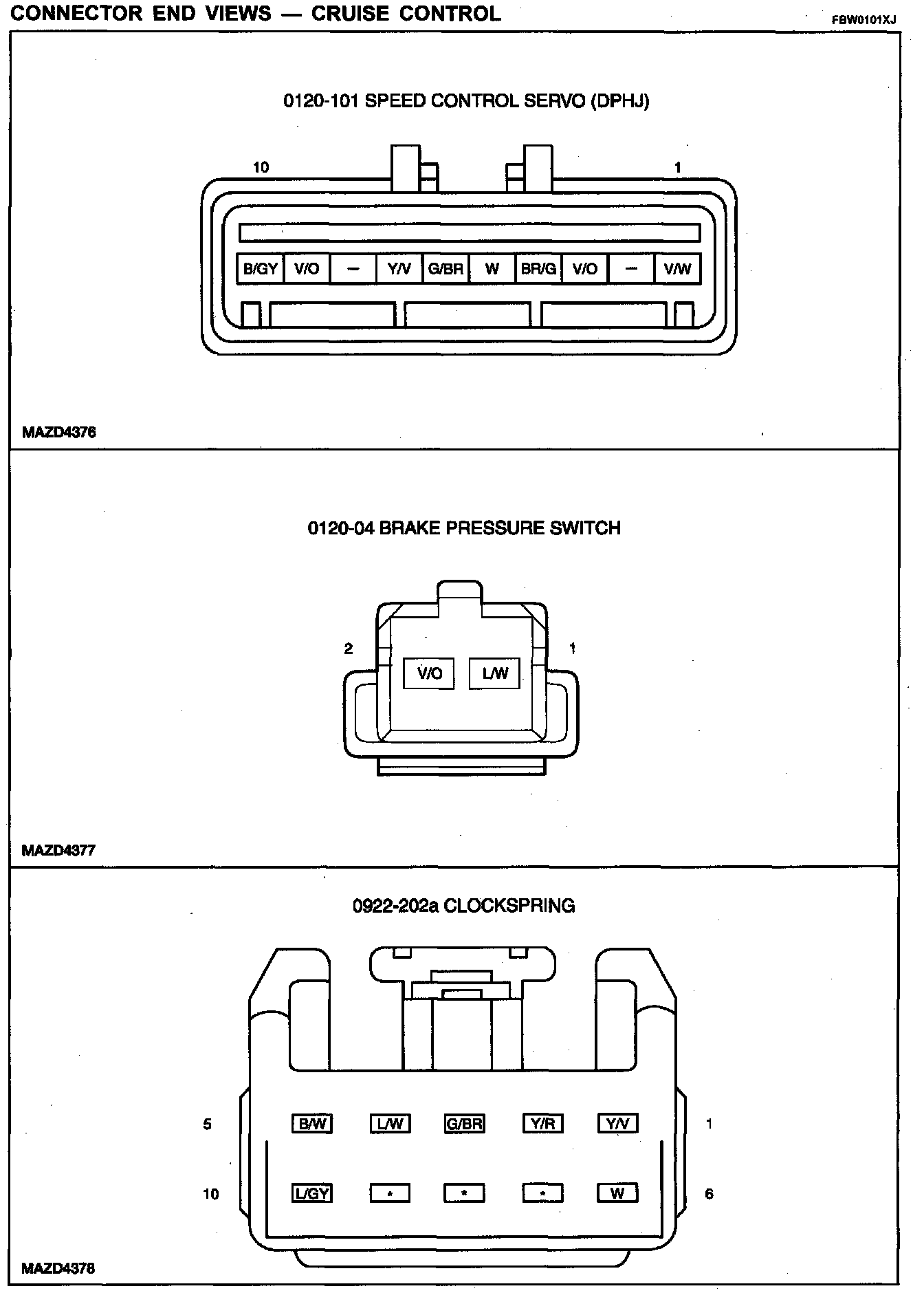

Connector End Views - Cruise Control (Part 1):

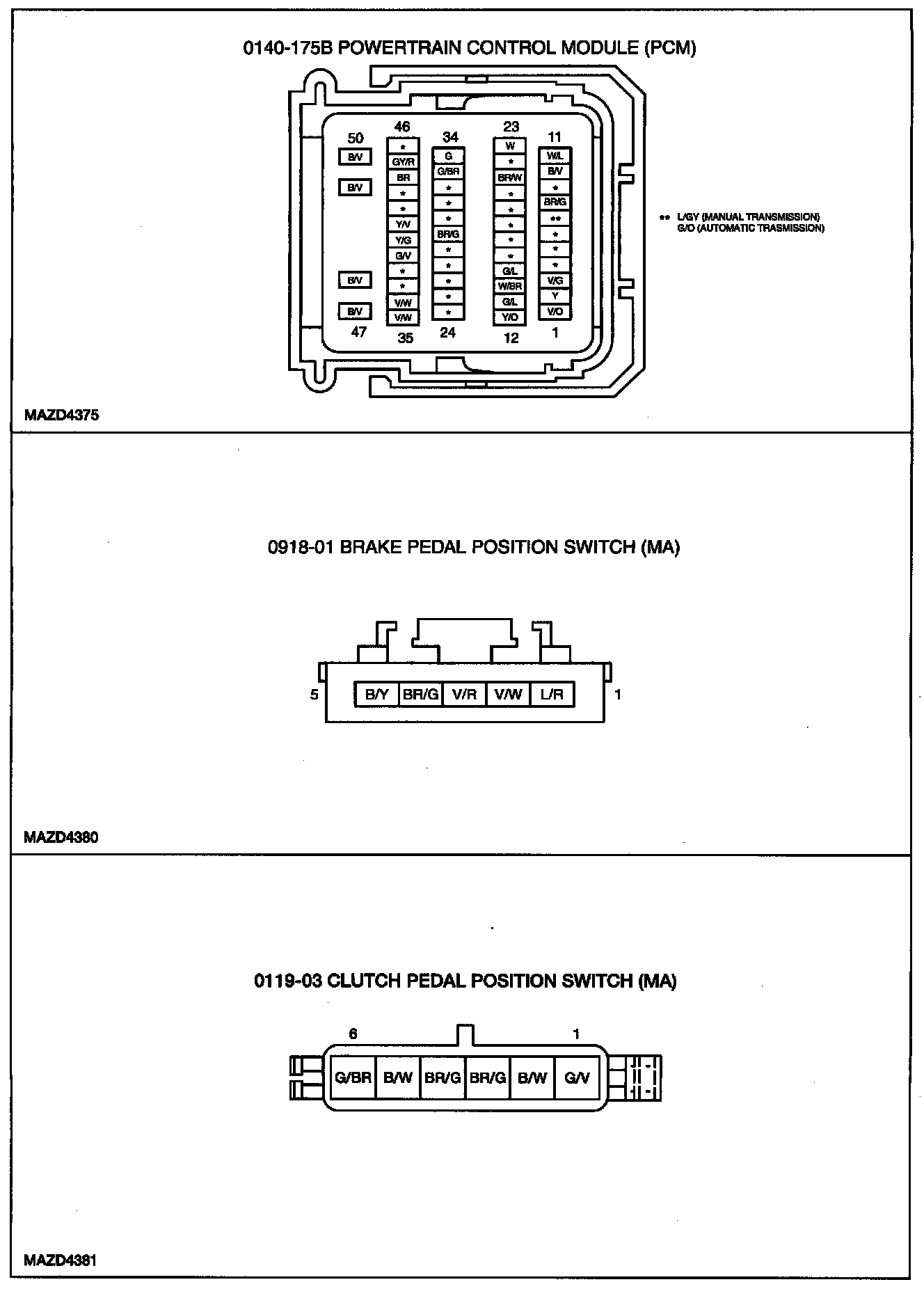

Connector End Views - Cruise Control (Part 2):



Connector End Views - Cruise Control (Part 3):
