Connector Endviews - Starting System

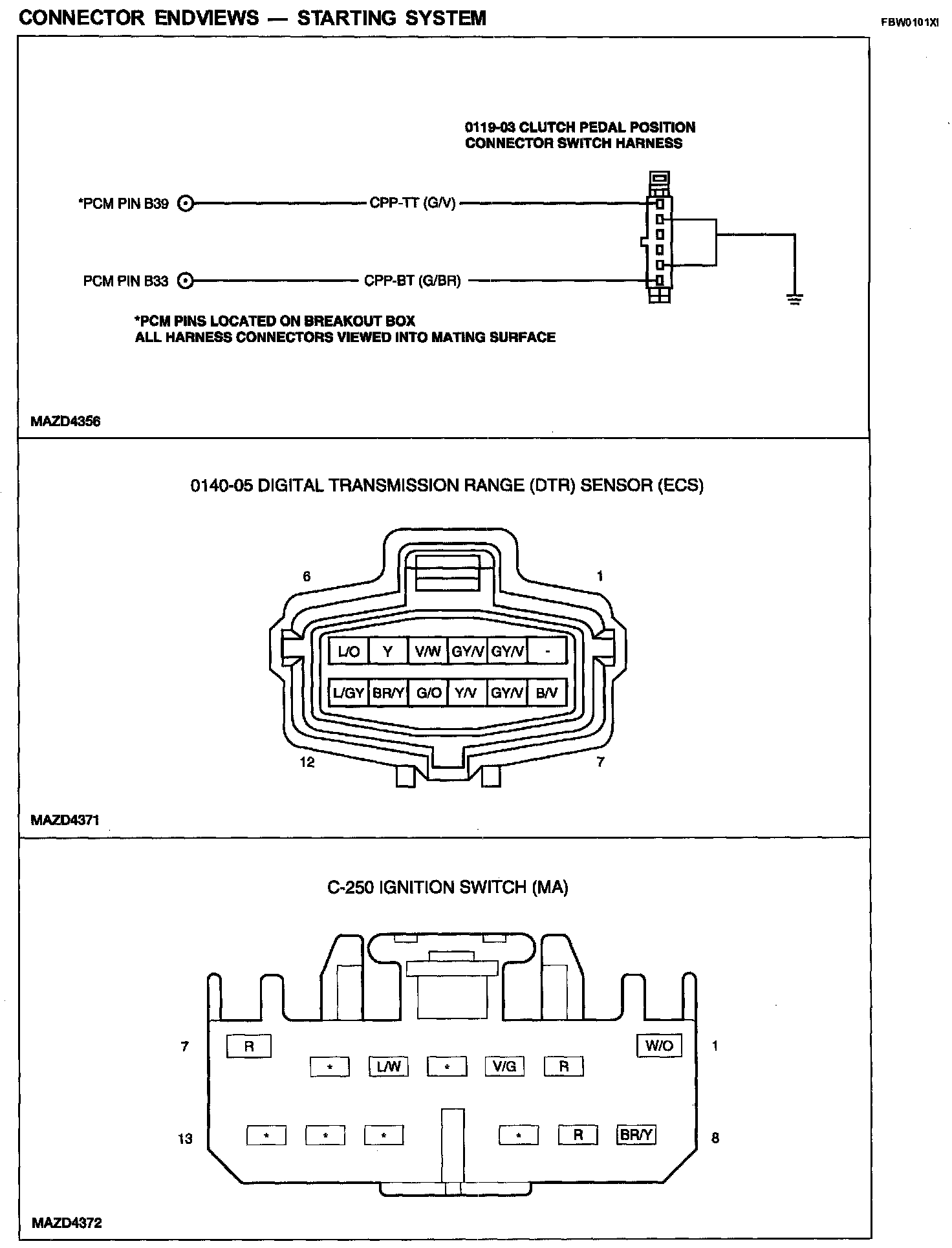

Connector Endviews - Starting System (Part 1):

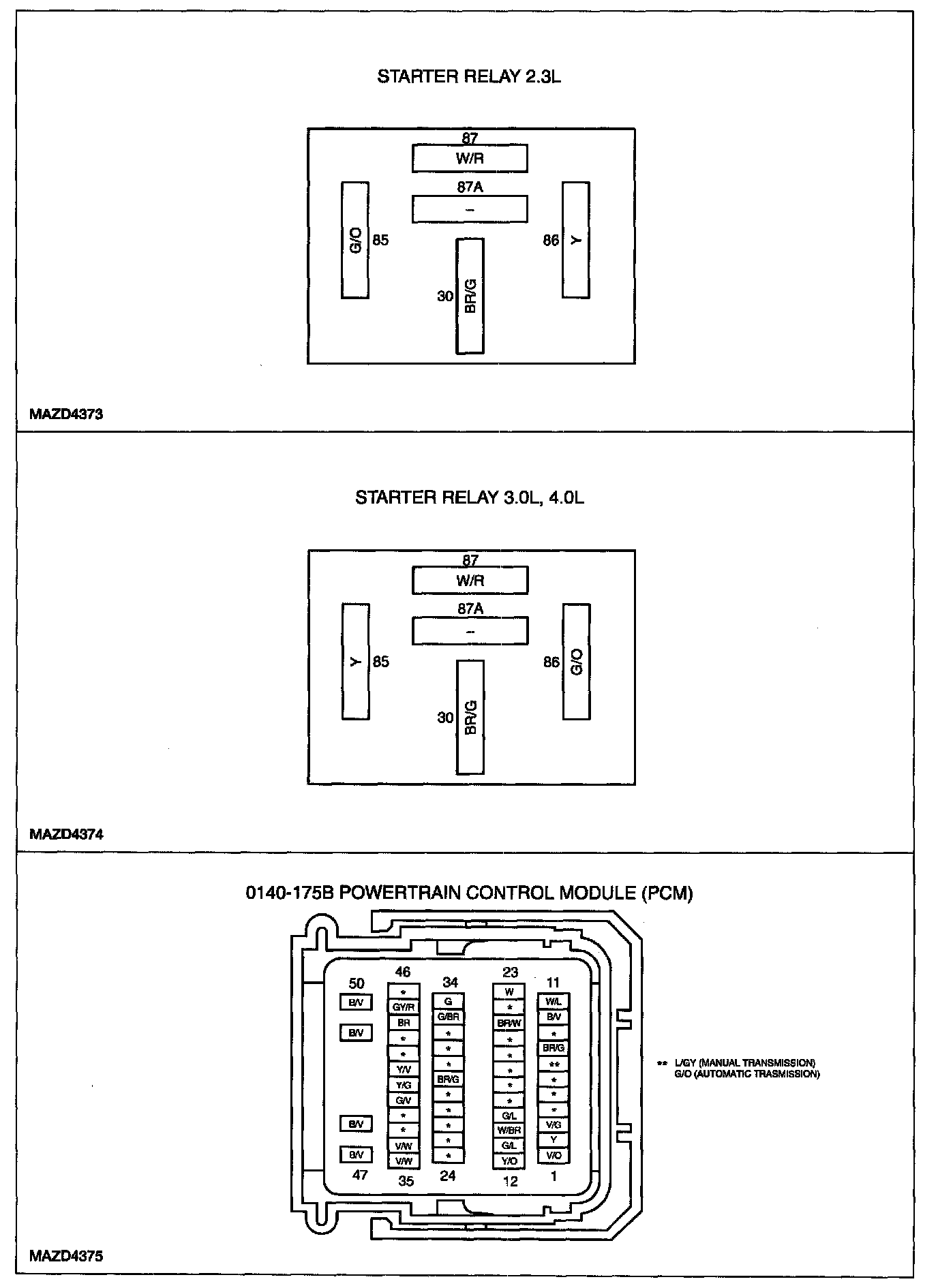

Connector Endviews - Starting System (Part 2):
