Automatic Transmission External Controls Pinpoint Test 1: Shift Interlock System Does Not Release / Lock Properly

AUTOMATIC TRANSMISSION EXTERNAL CONTROLS PINPOINT TEST 1: SHIFT INTERLOCK SYSTEM DOES NOT RELEASE / LOCK PROPERLY

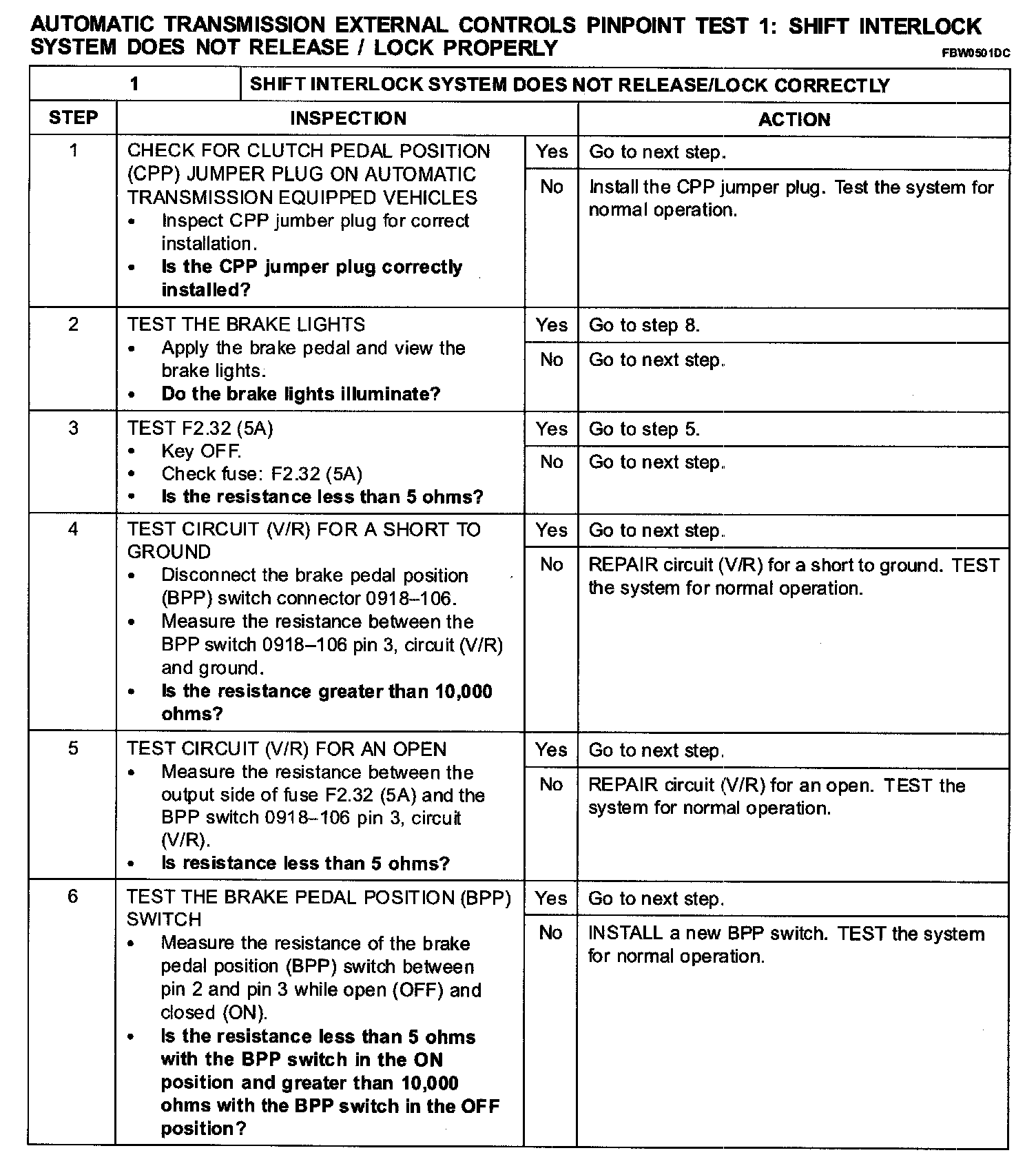

Step 1-Step 6:

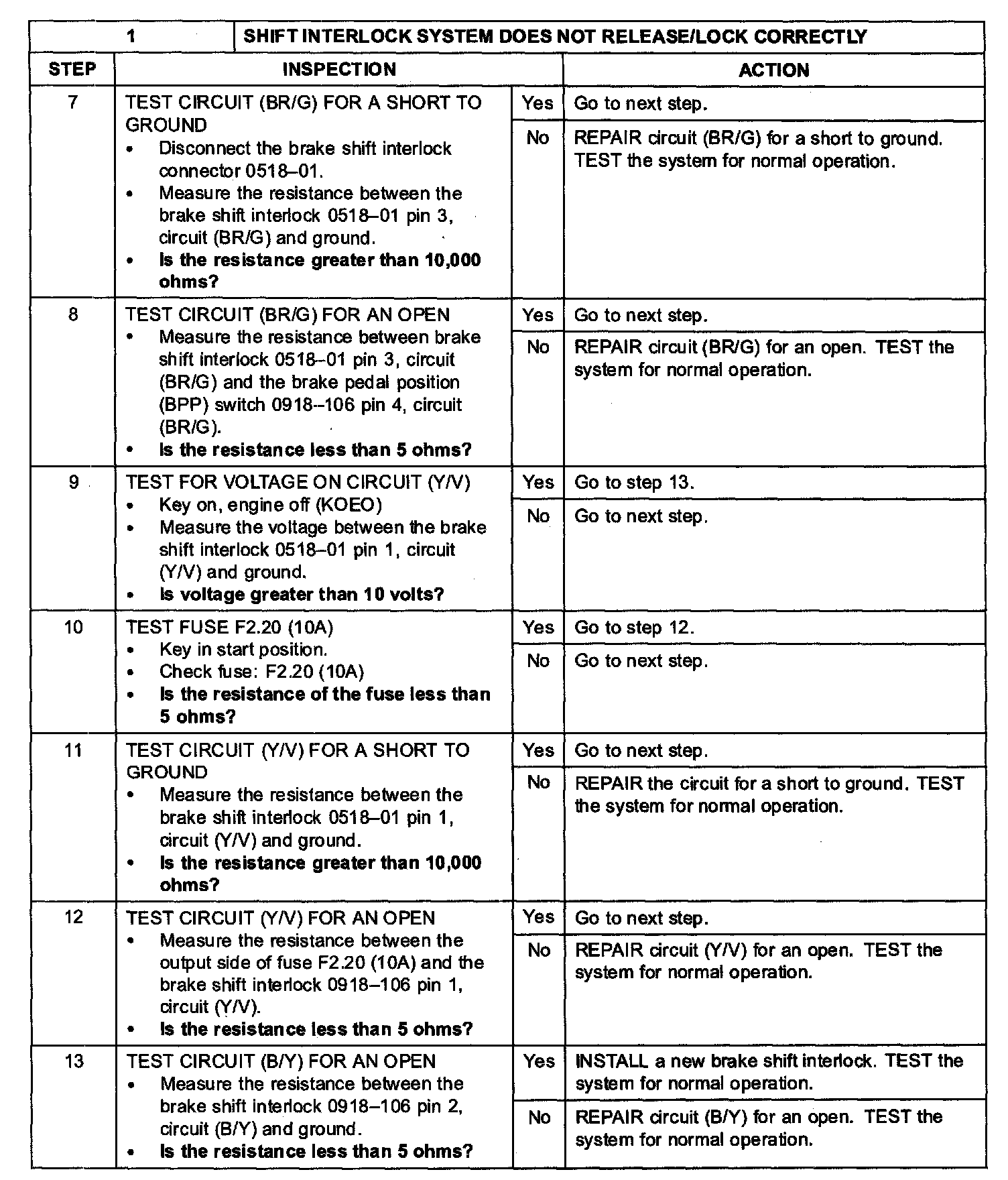

Step 7-Step 13:
