Power Window Main Switch Inspection



Power Window Main Switch Inspection

1. Remove the power window main switch.

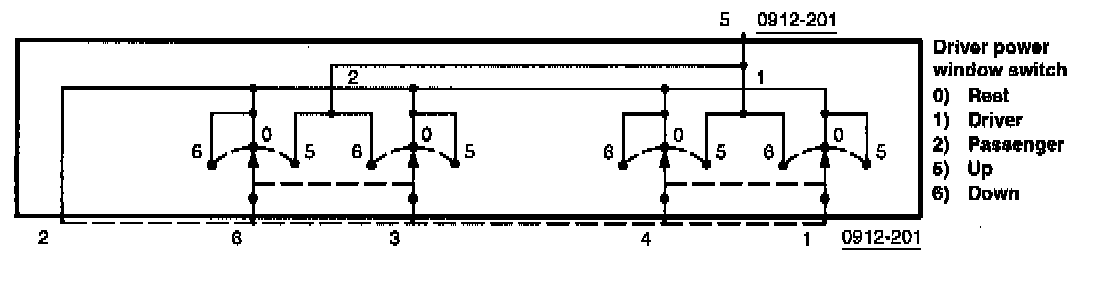

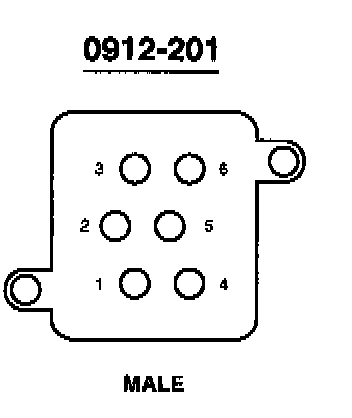

2. Inspect for continuity between the power window main switch terminals using an ohmmeter.

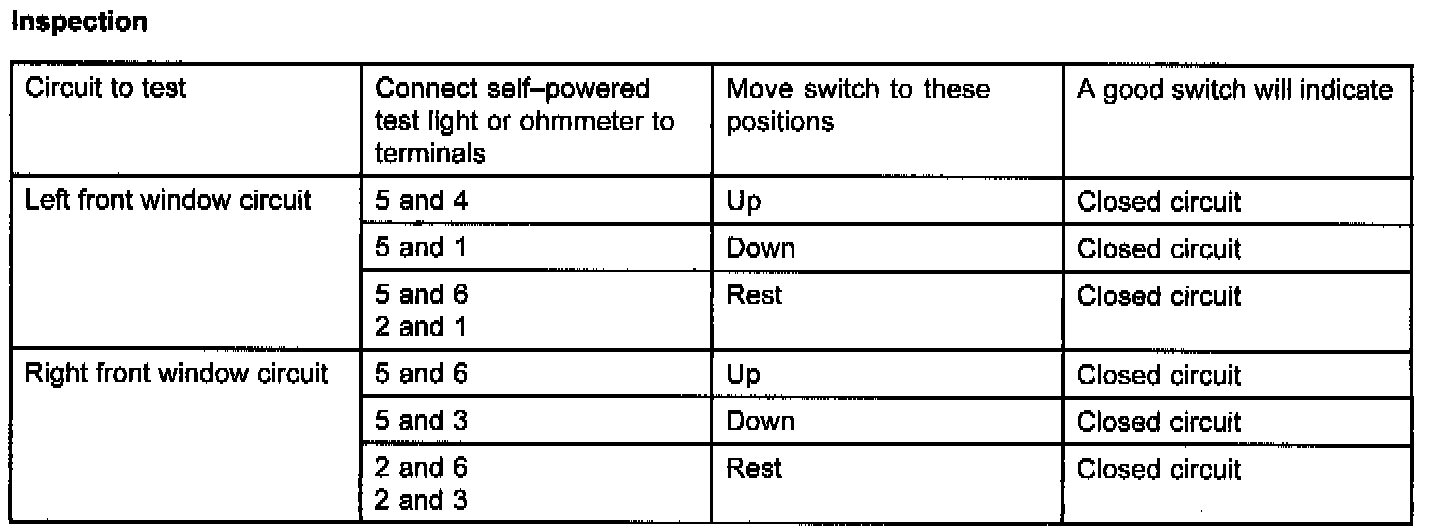

Inspection






3. If not as specified, replace the power window main switch.
