Front Fog Light Bulb Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove in the order indicated in the illustration.
CAUTION:
- A halogen bulb generates extremely high heat when it is used. If the surface of the bulb is soiled, excessive heat will build up and the light's life will be shortened. When replacing the bulb, hold the metal flange, not the glass.

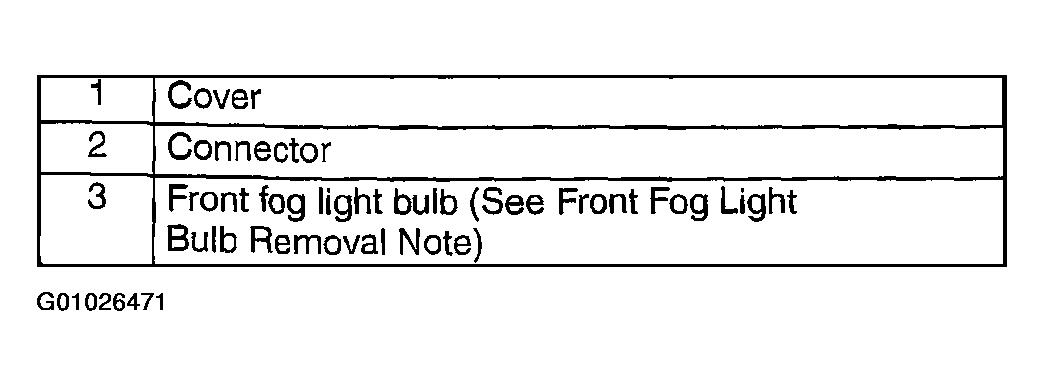

Fig 1: Removal Order Of Front Fog Light Bulb
Courtesy of MAZDA MOTORS CORP.

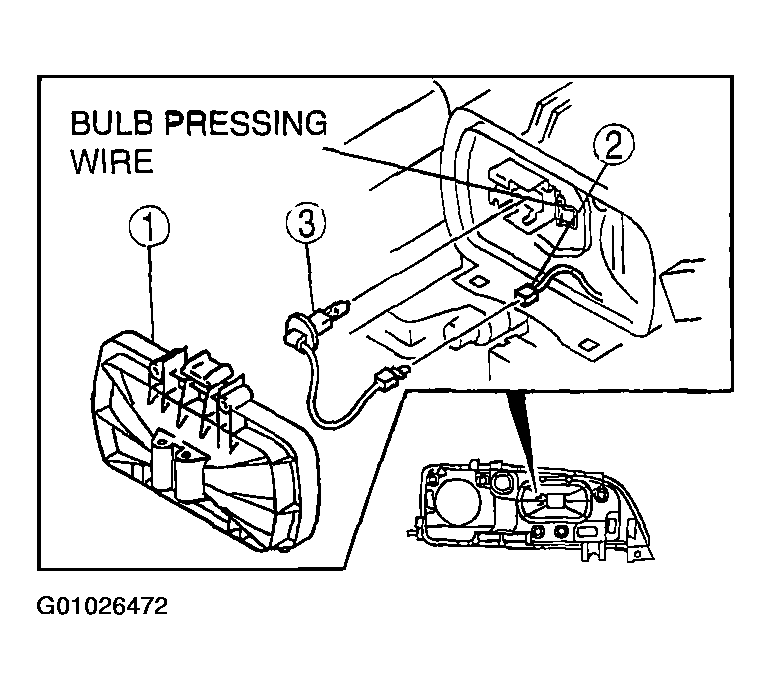

Fig 2: Removing/Installing Front Fog Light Bulb
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
